Product Information — Constellation Microphones

In this section:

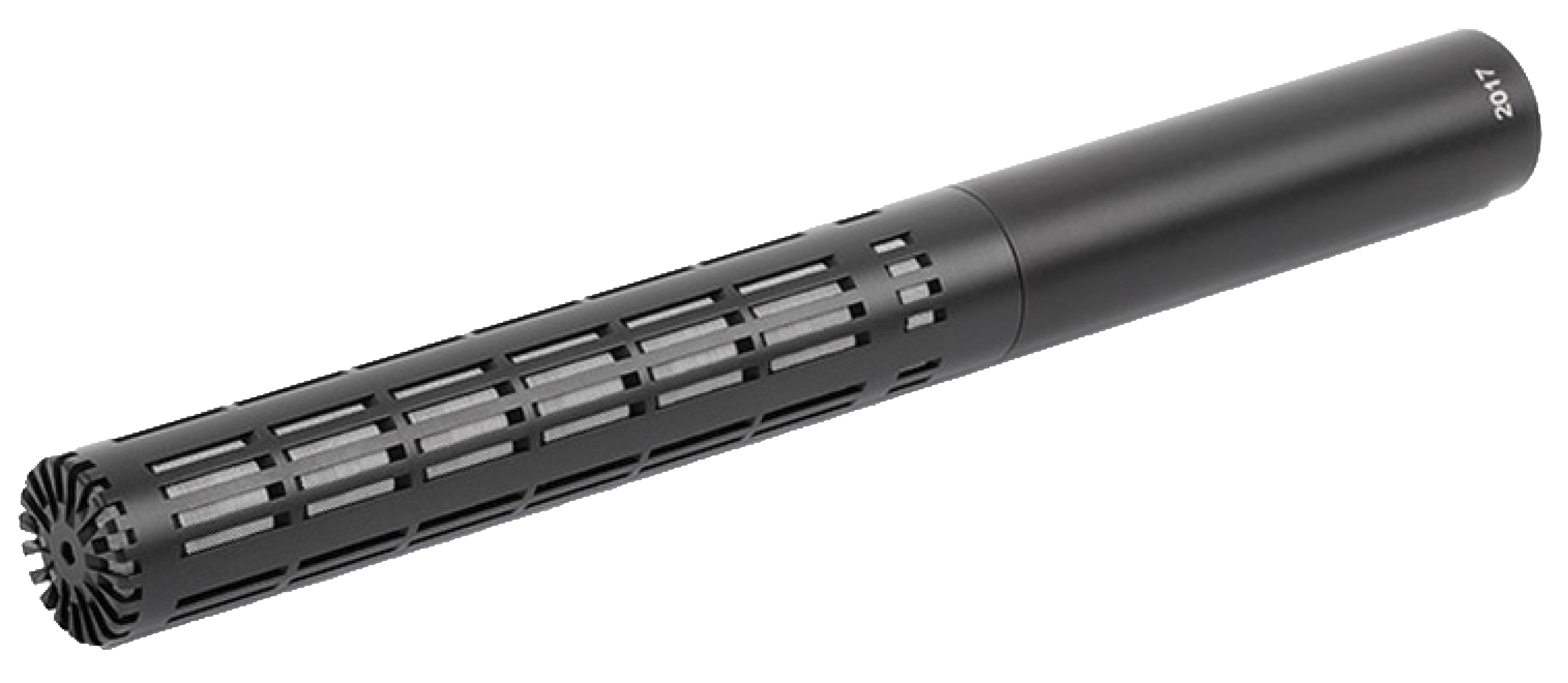

2017 | 2017_nologo_no_bkgrnd.png | shotgun with preamp

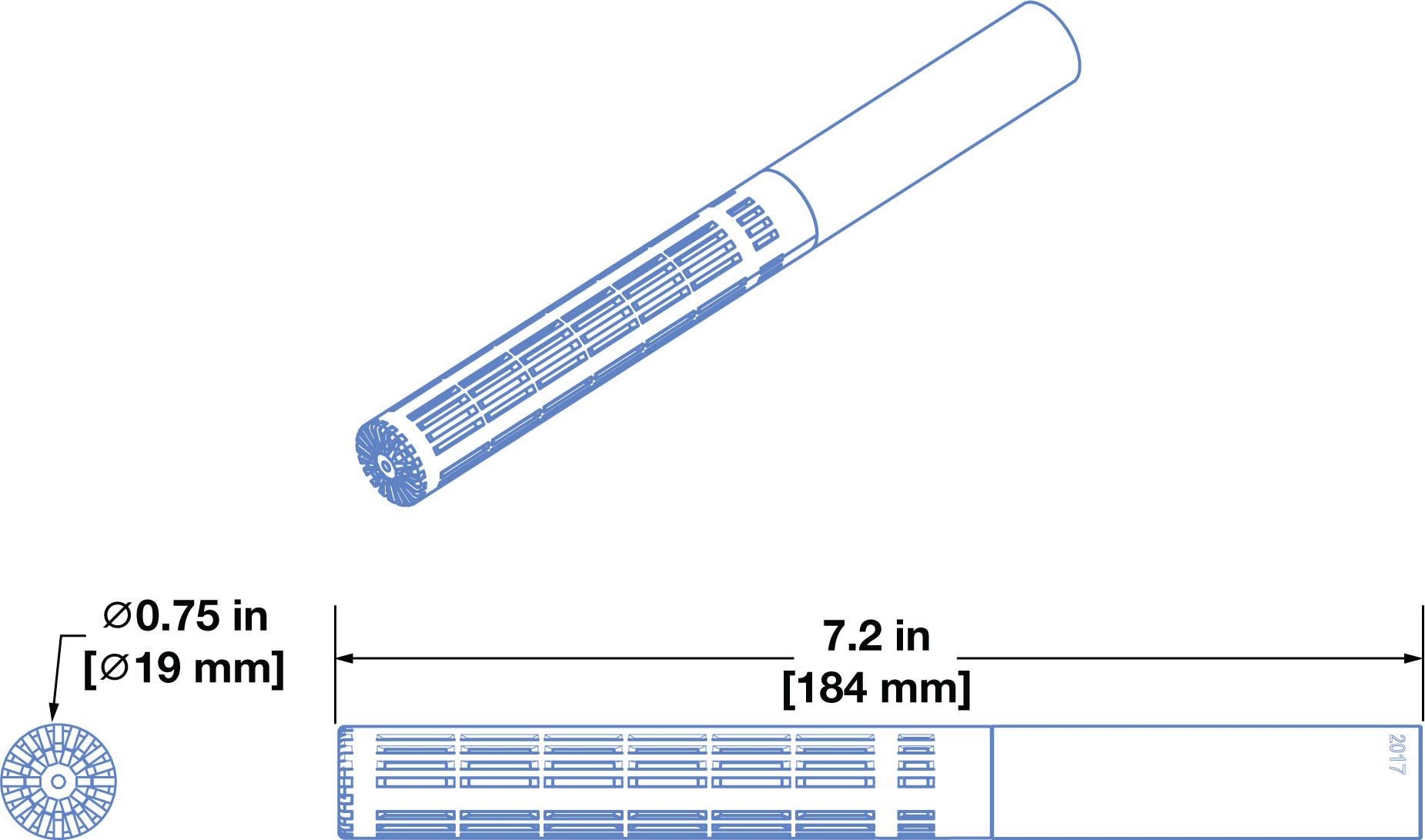

Model CONSTEL 2017 (Black only) - PN 40.166.055.03


Microphone

Length - 7.2 in (184 mm)

Diameter - 0.75 in (19 mm)

Preamplifier

Integrated

Connection

XLR (integrated)

2017_windscreen_Dimensions.ai

2017 capsule with DUA0041 windscreen

Length - 7.98 in (203 mm)

Diameter - 2.36 in (60 mm)

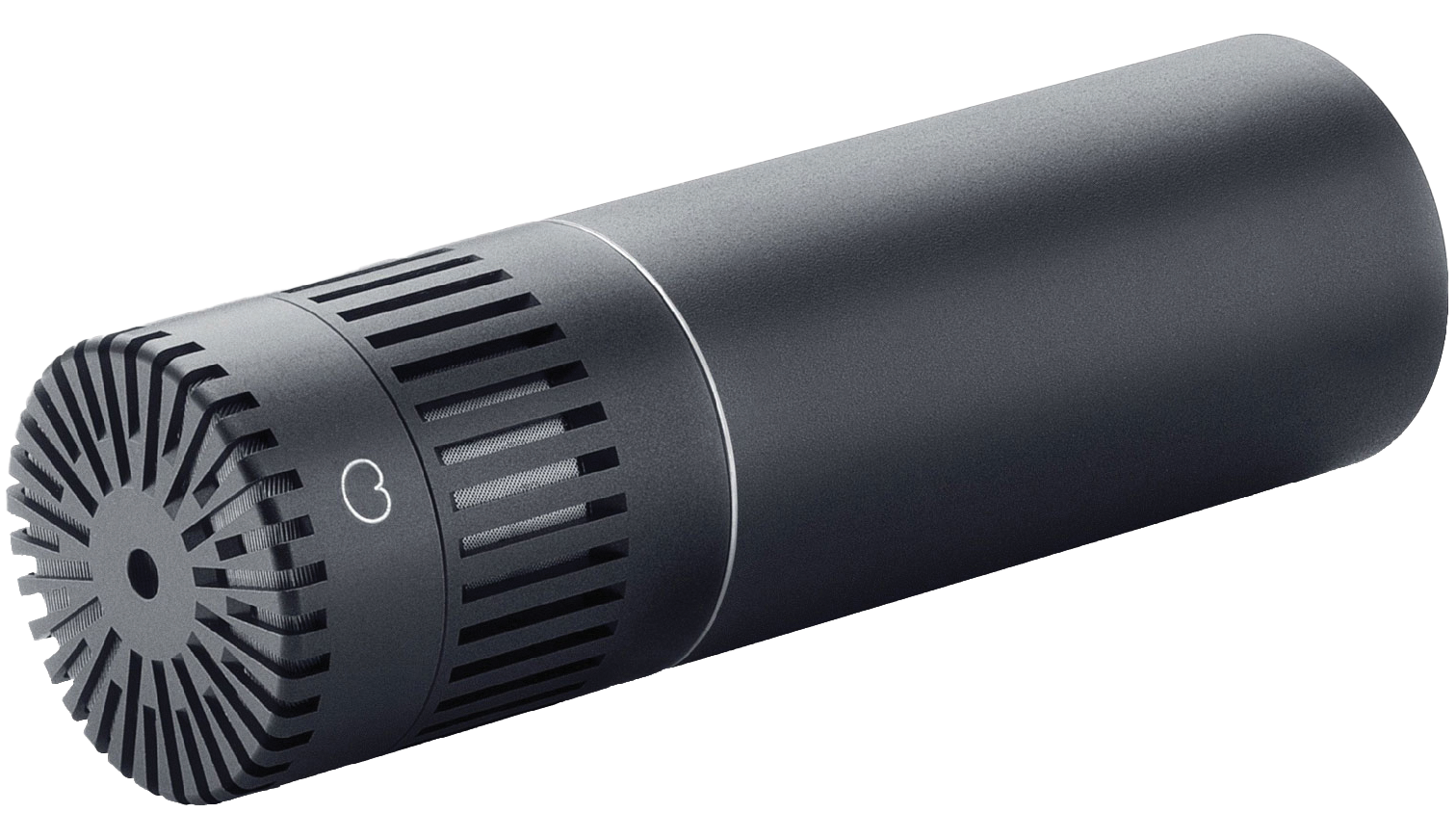

4011C-MC | 4011C_nologo.jpg | cardioid with compact preamp

Model CONSTEL 4011C-MC (black only) - PN 40.166.045.22

4011C-MC_Dimensions.ai

Microphone

Length - 2.52 in (64 mm)

Diameter - 0.75 in (19 mm)

Preamplifier

Integrated

Connection

XLR (integrated)

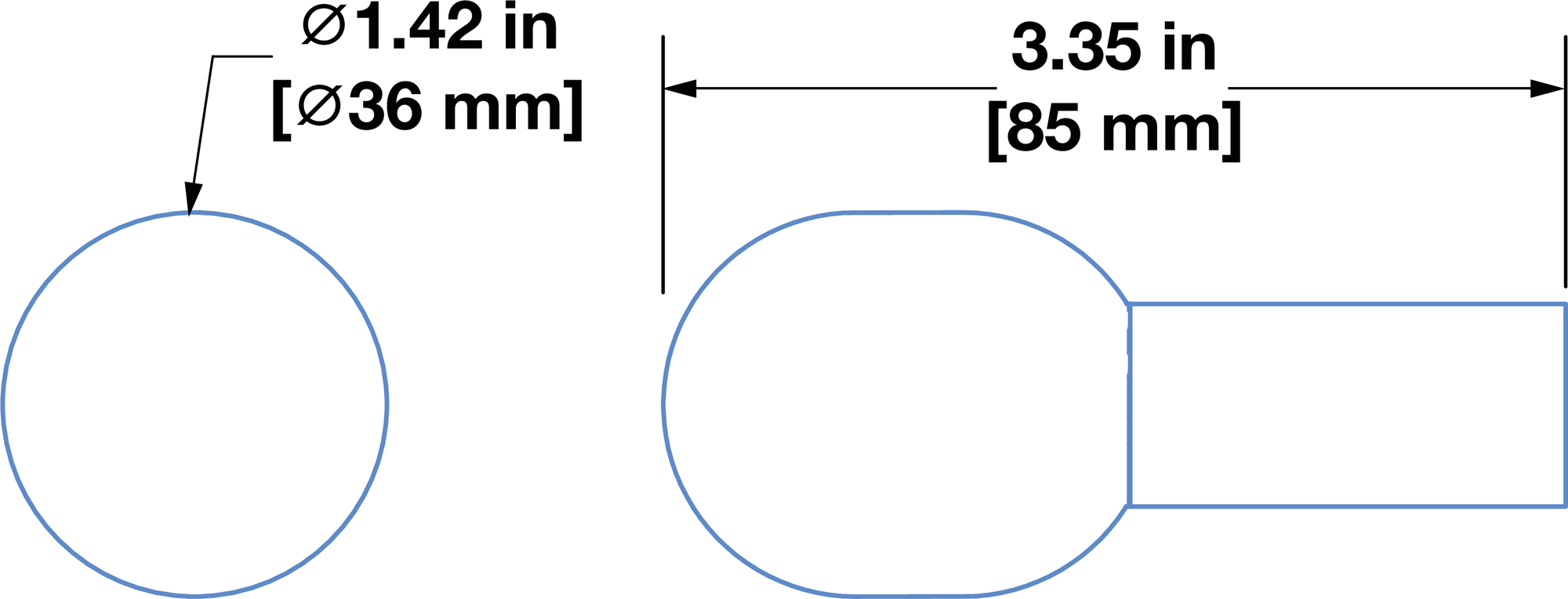

4011C-MC_windscreen_Dimensions.ai

4011C-MC microphone with DUA0041 windscreen

Length - 3.35 in (85 mm)

Diameter - 1.42 in (36 mm)

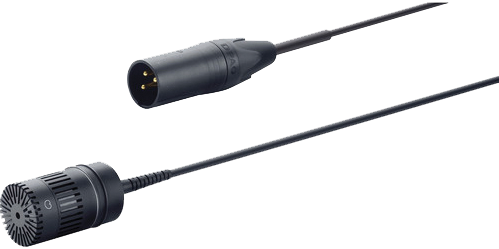

4011ER-MC | 4011ER_nologo.jpg | cardioid with cable and preamp

Model CONSTEL 4011ER-MC (Black only) - PN 40.166.045.21

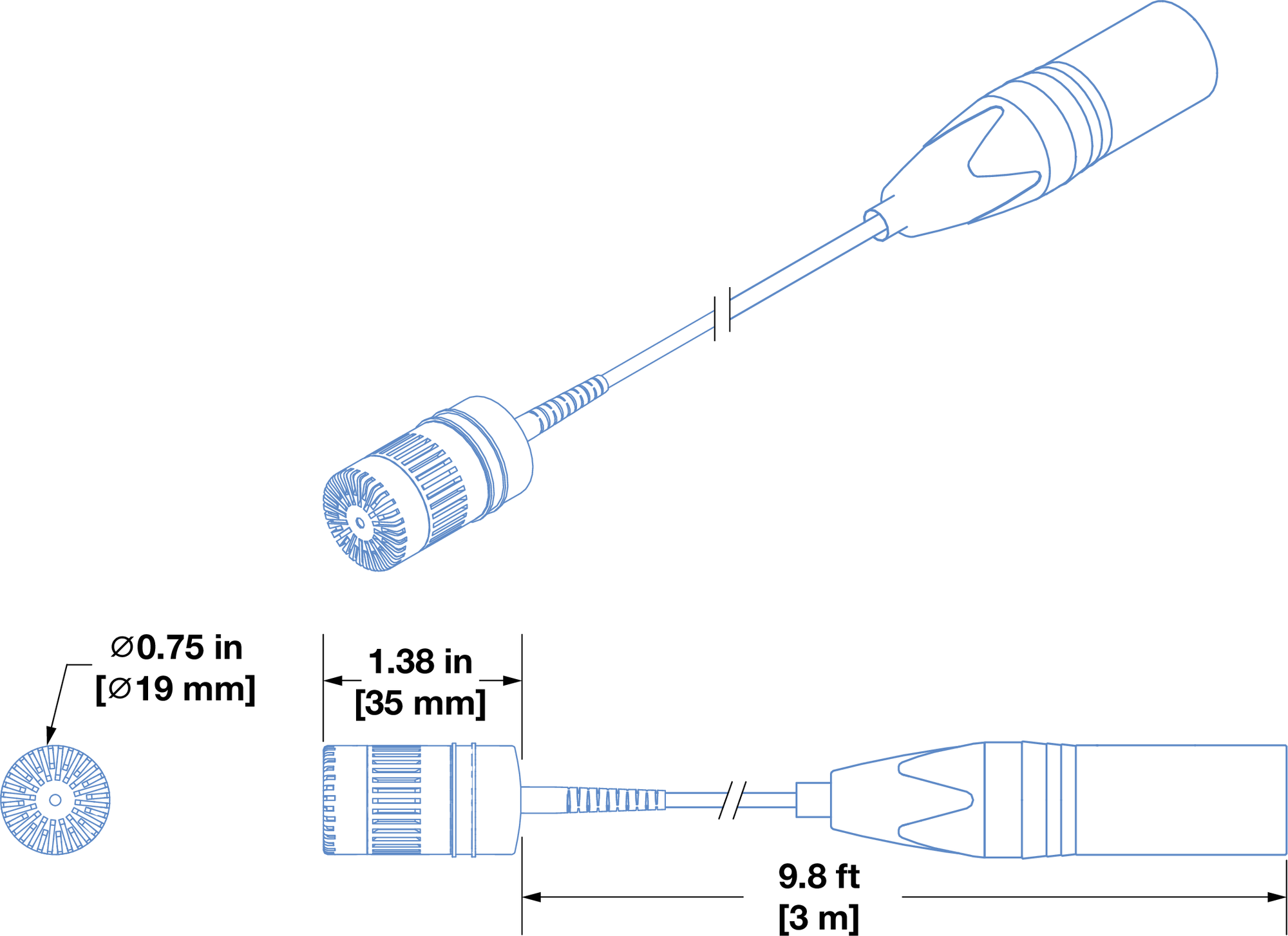

4011ER-MC_Dimensions.ai

Capsule

Length - 1.38 in (35 mm)

Diameter - 0.75 in (19 mm)

Preamplifier

Length - 2.83 in (72 mm)

Diameter - 0.75 in (19 mm)

Cable

Length - 9.8 ft (3 m)

Connection

XLR

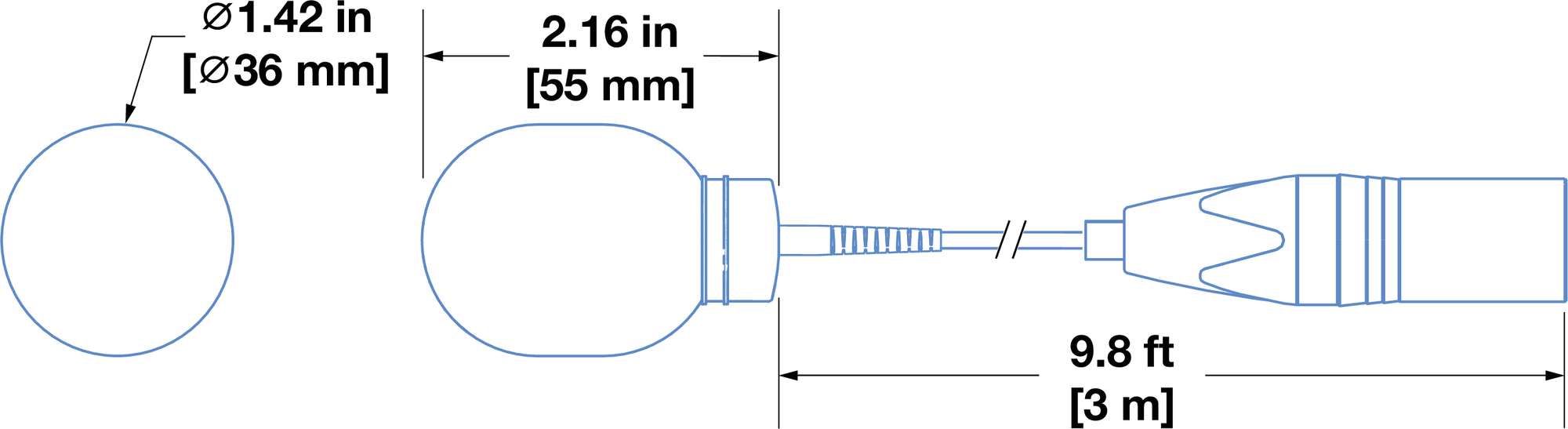

4011ER-MC_windscreen_Dimensions.ai

4011ER-MC capsule with DUA0041 windscreen

Length - 2.16 in (55 mm)

Diameter - 1.42 in (36 mm)

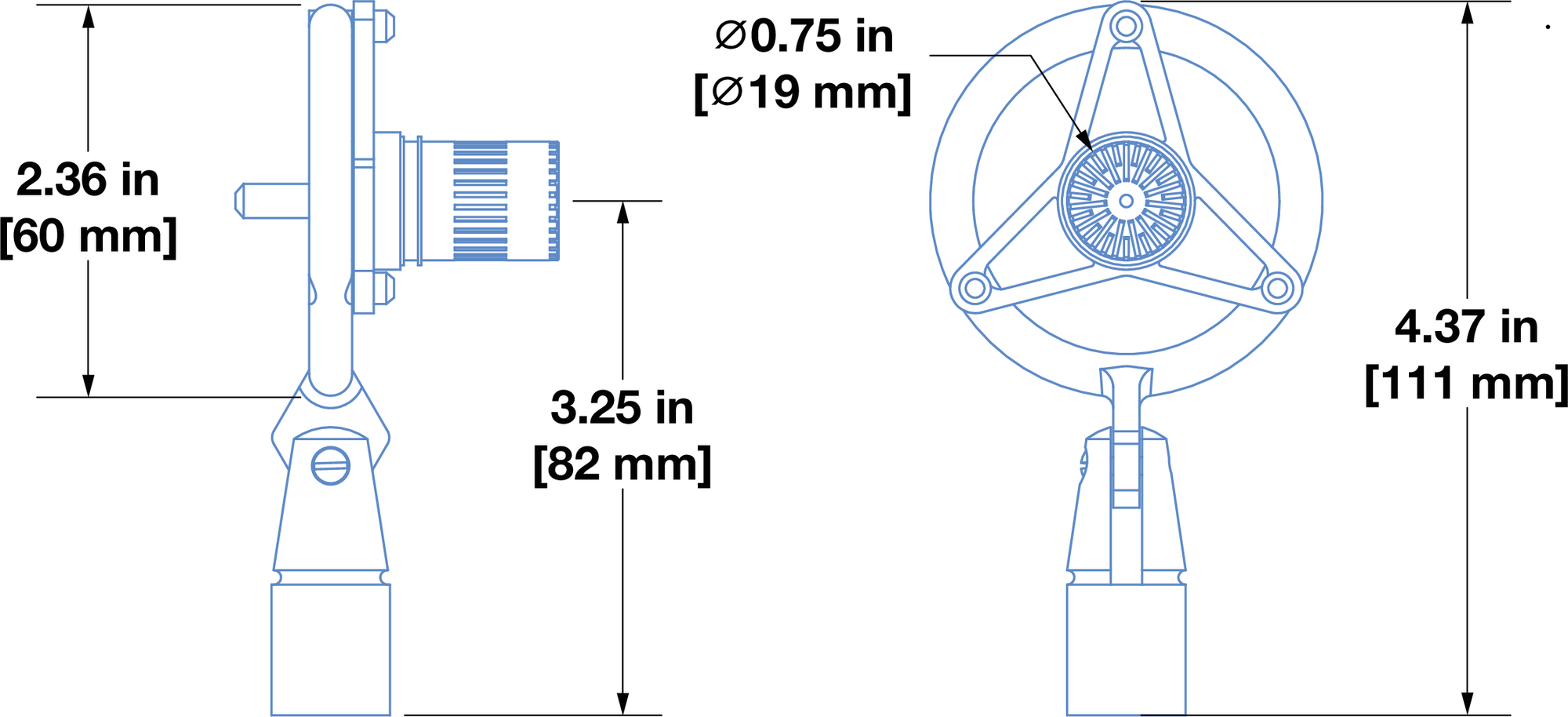

CSM4000_Dimensions_reduced.ai

CSM 4000 Shock Mount (available from DPA)

Height - 4.51 in (114 mm)

Diameter - 2.48 in (63 mm)

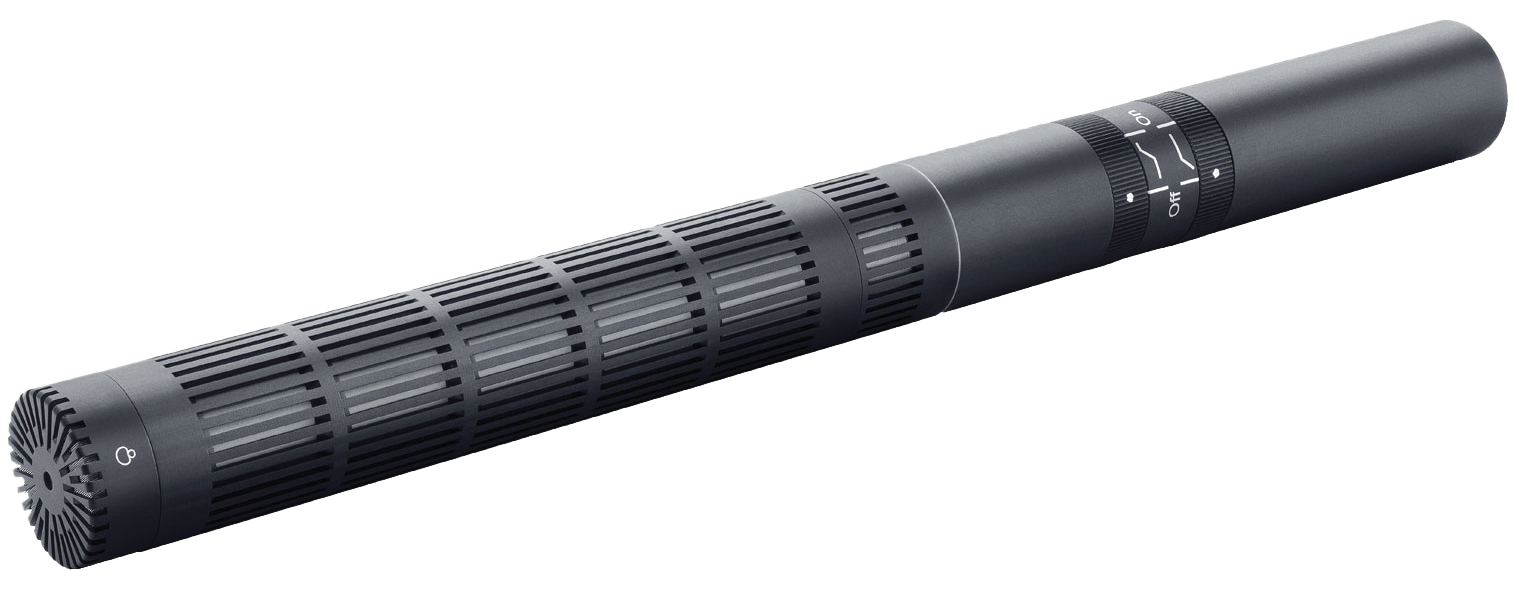

4017B-MC | 4017B_nologo.jpg | shotgun with preamp

Model CONSTEL 4017B-MC (black only) - PN 40.166.055.01

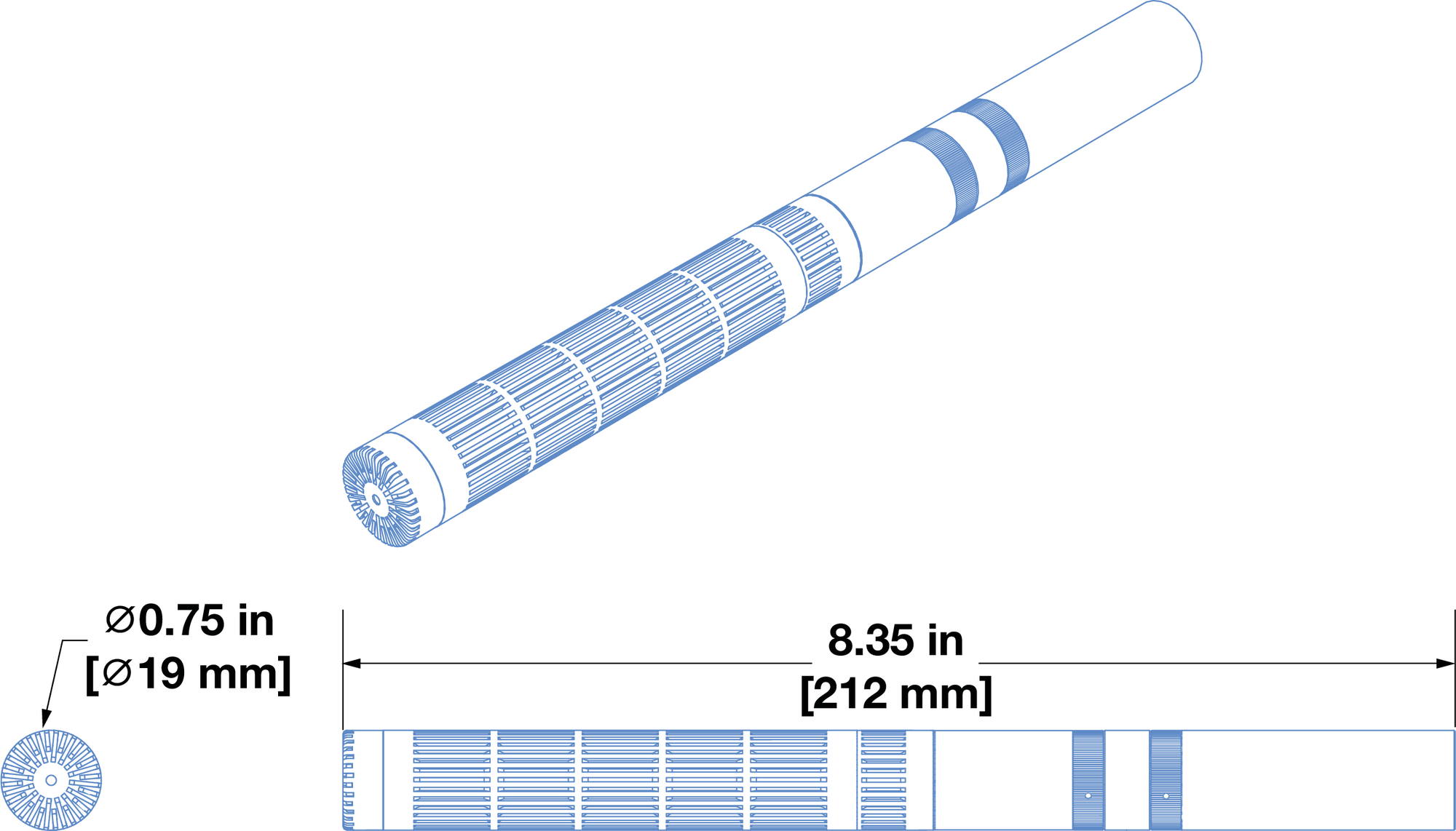

4017B-MC_Dimensions.ai

Microphone

Length - 8.35 in (212 mm)

Diameter - 0.75 in (19 mm)

Preamplifier

Integrated

Connection

XLR (integrated)

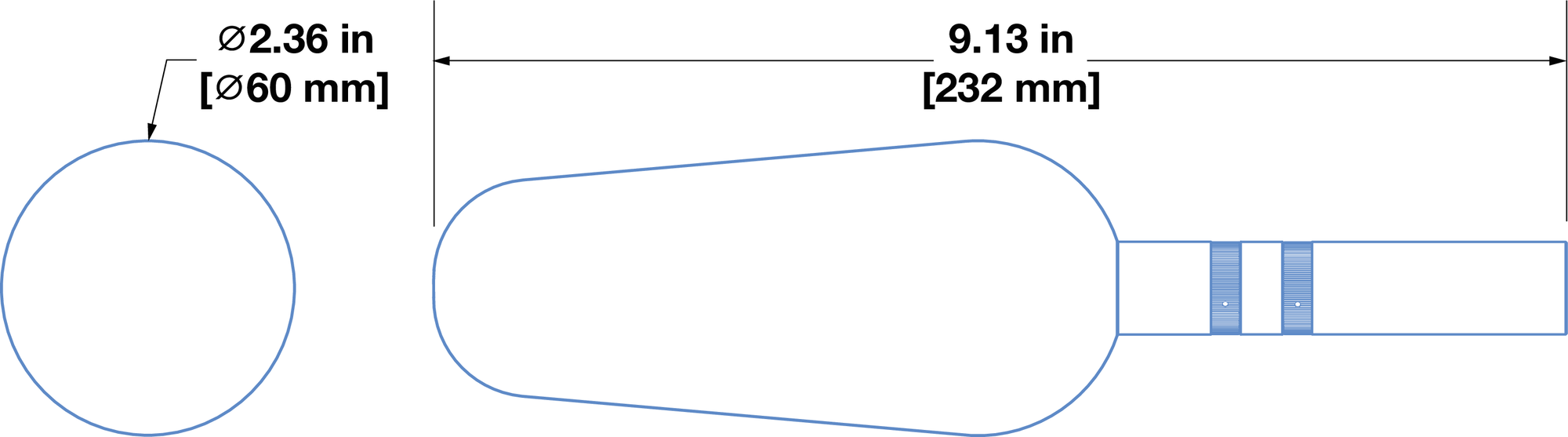

4017B-MC_windscreen_Dimensions.ai

4017B-MC Microphone with DUA0073 Windscreen

Length - 9.13 in (232 mm)

Diameter - 2.36 in (60 mm)

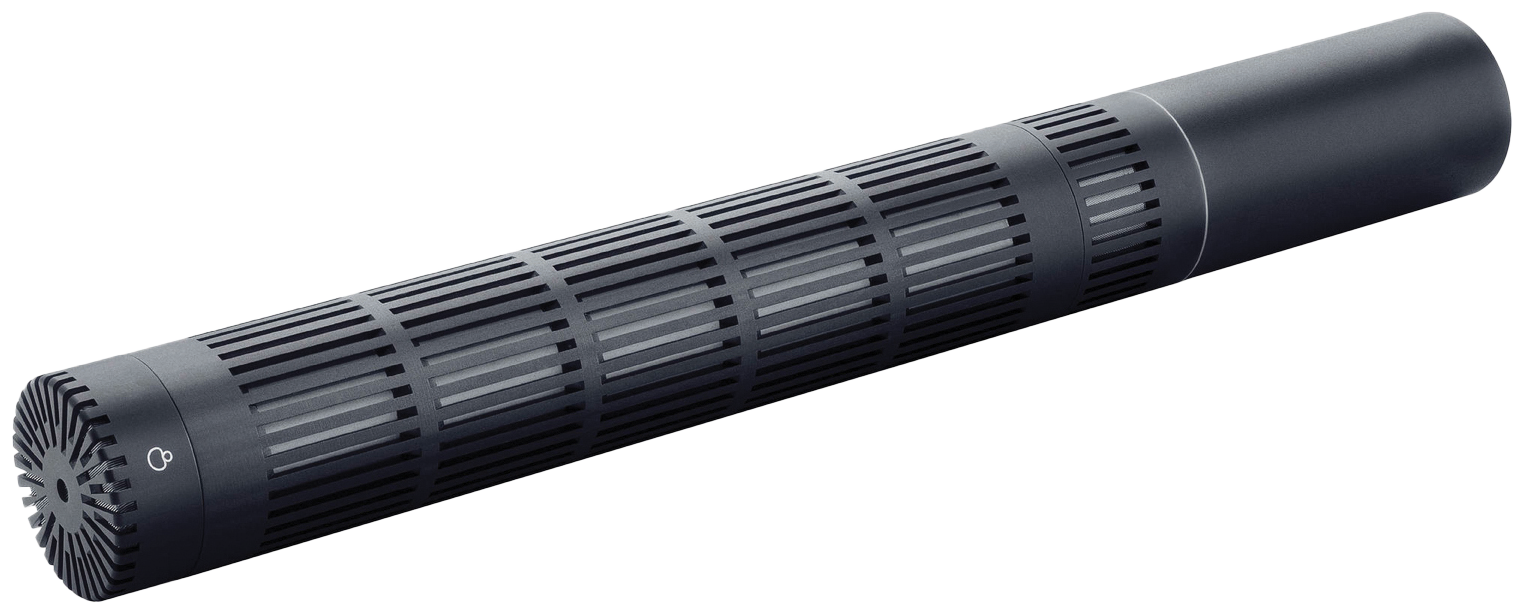

4017C-MC | 4017C_nologo.jpg | shotgun with compact preamp

Model CONSTEL 4017C-MC (Black only) - PN 40.166.055.02

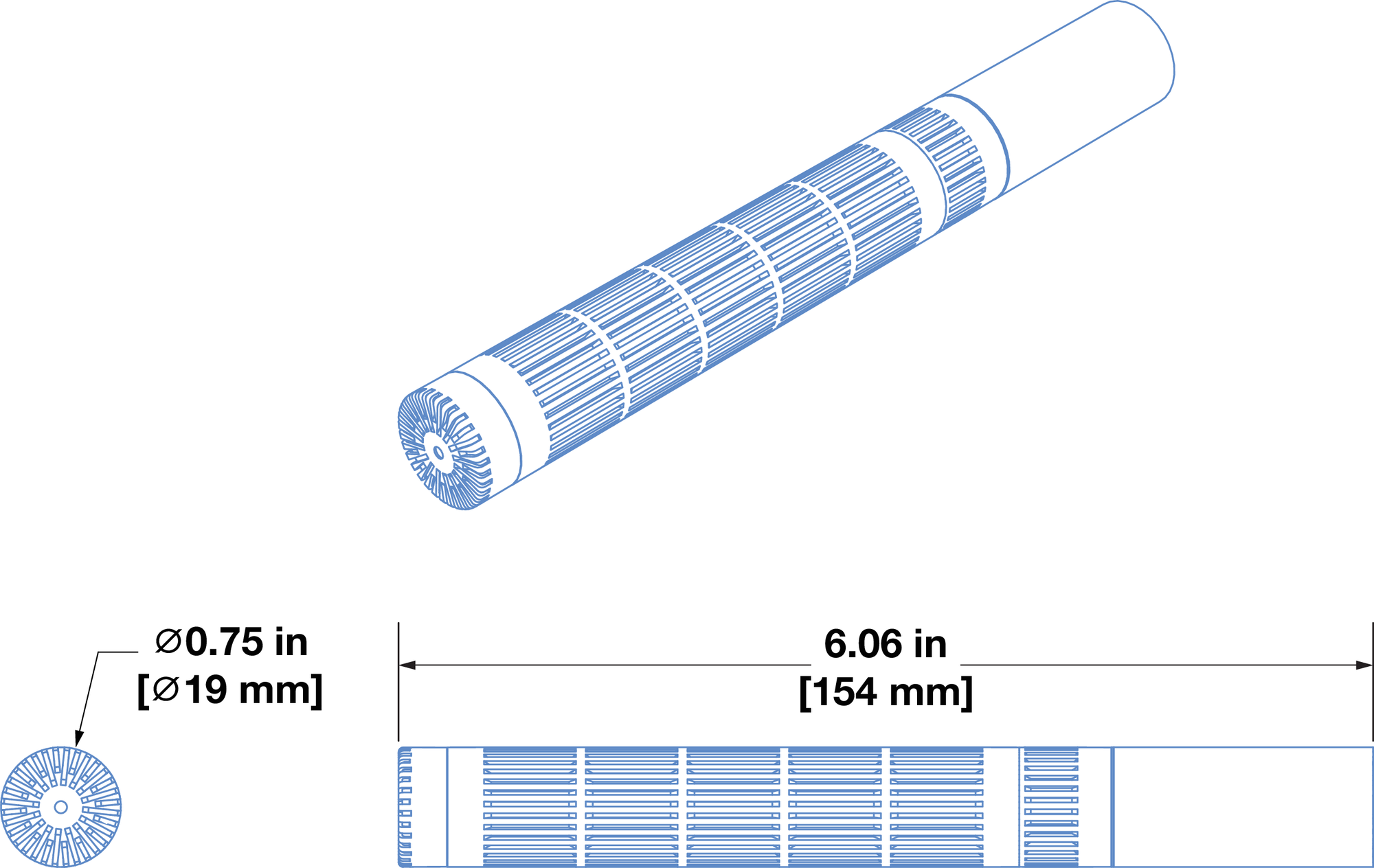

4017C-MC_Dimensions.ai

Microphone

Length - 6.06 in (154 mm)

Diameter - 0.75 in (19 mm)

Preamplifier

Integrated

Connection

XLR (integrated)

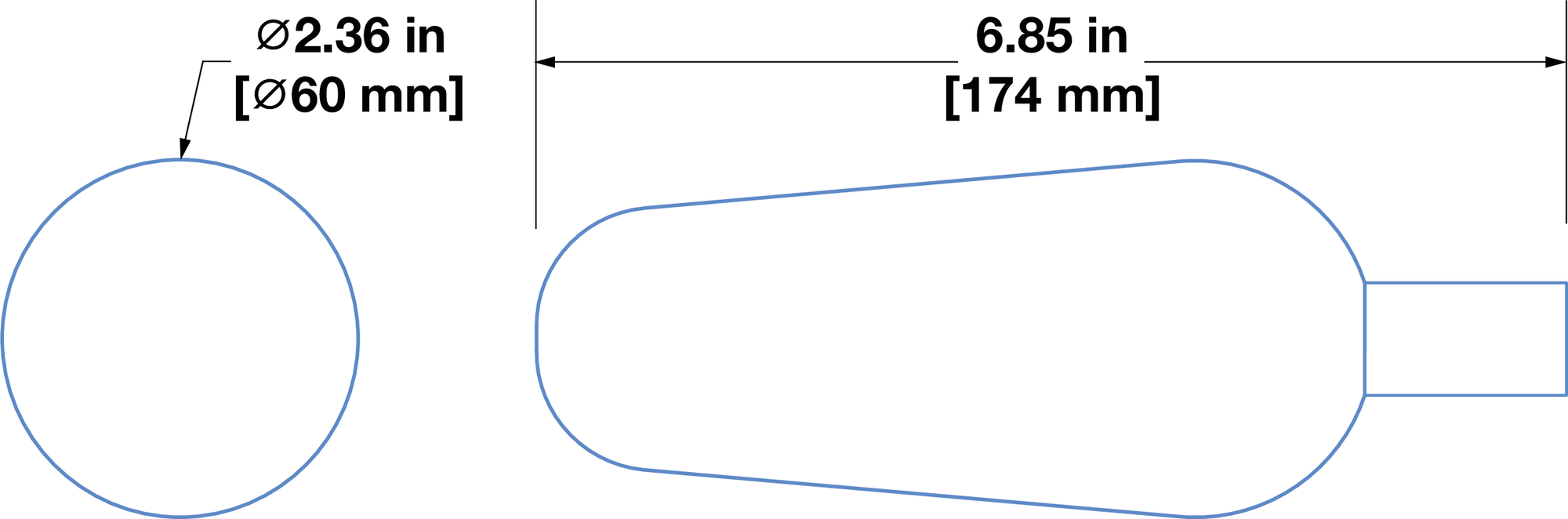

4017C-MC_windscreen_Dimensions.ai

4017C-MC microphone with DUA0073 windscreen

Length - 6.85 in (174 mm)

Diameter - 2.36 in (60 mm)

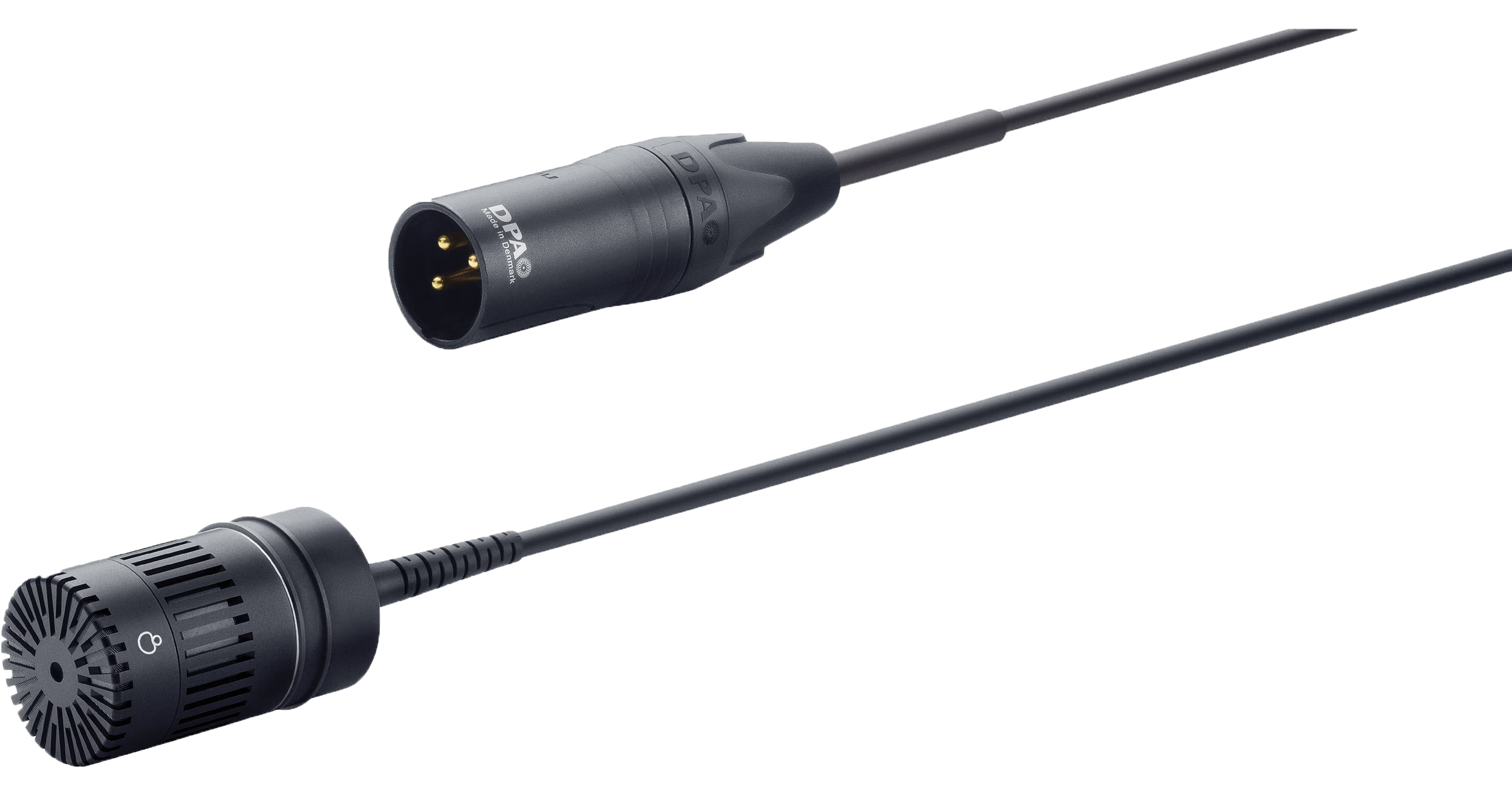

4018ER-MC | 140_4018ER_nologo2.png | supercardioid with cable and preamp

Model CONSTEL 4011ER-MC (Black only) - PN 40.166.045.31

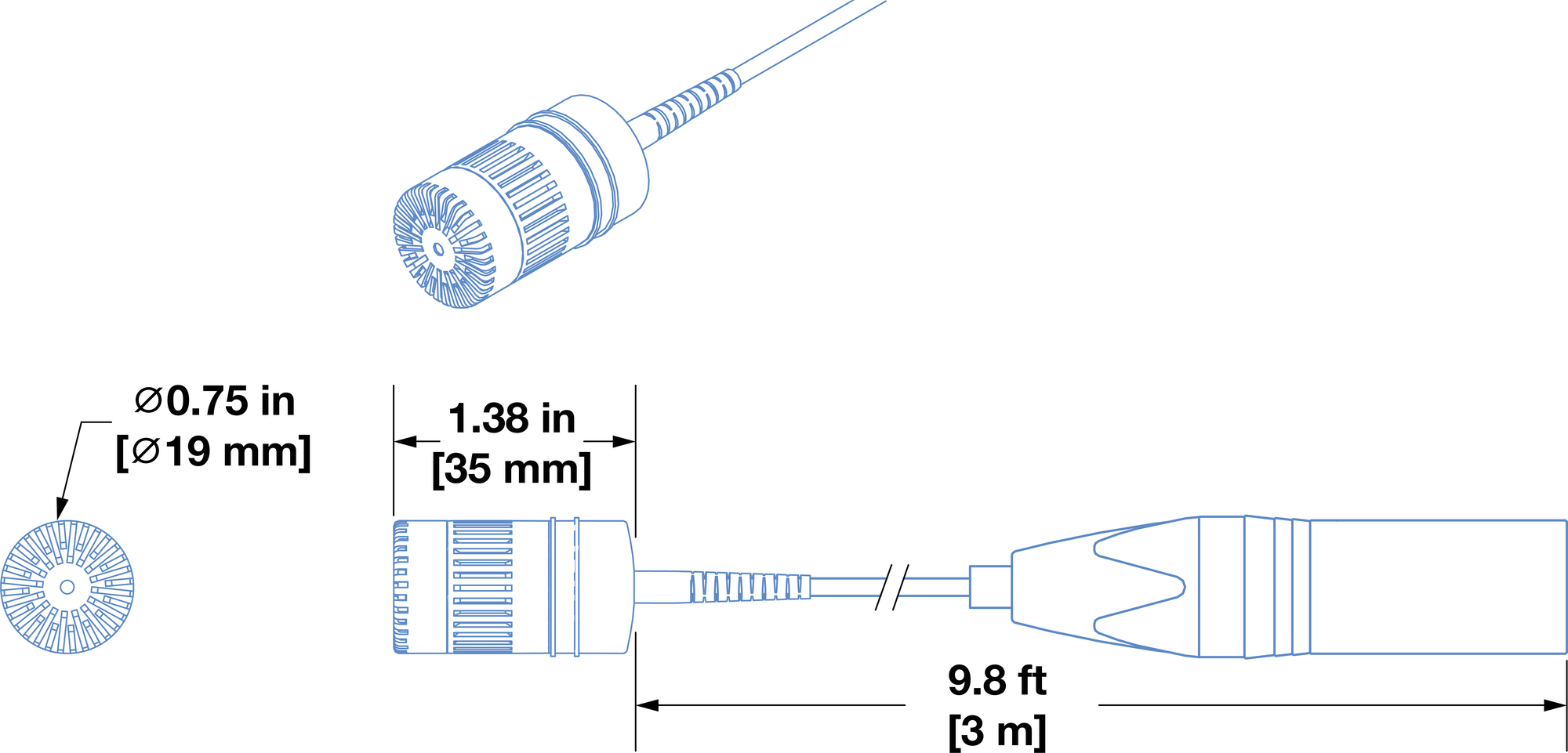

150_4018ER-MC_Dimensions.ai

Capsule

Length - 1.38 in (35 mm)

Diameter - 0.75 in (19 mm)

Preamplifier

Length - 2.83 in (72 mm)

Diameter - 0.75 in (19 mm)

Cable

Length - 9.8 ft (3 m)

Connection

XLR

160_4018ER-MC_windscreen_Dimensions.ai

4011ER-MC capsule with DUA0041 windscreen

Length - 2.16 in (55 mm)

Diameter - 1.42 in (36 mm)

CSM4000_Dimensions_reduced.ai

CSM 4000 Shock Mount (available from DPA)

Height - 4.51 in (114 mm)

Diameter - 2.48 in (63 mm)

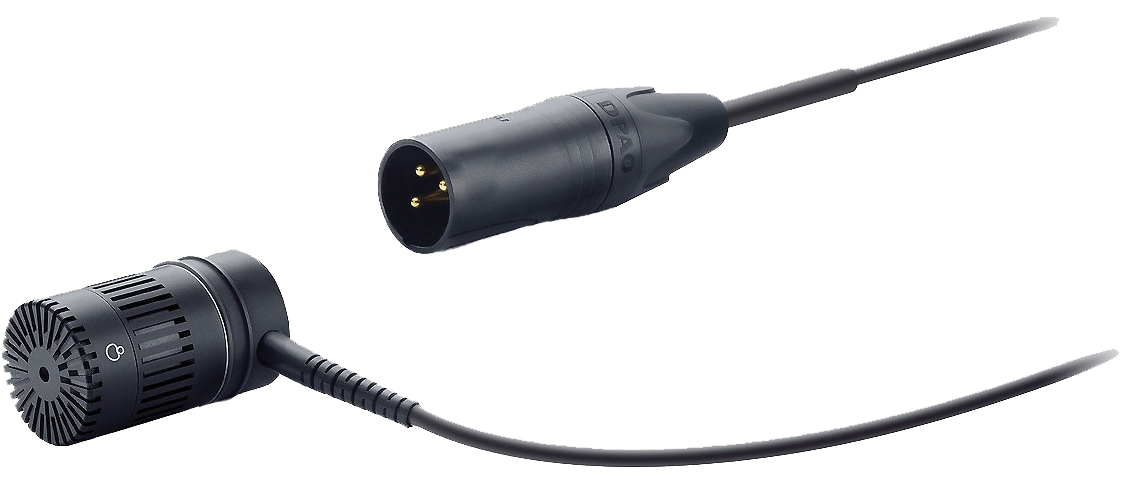

4018ES-MC | 4018ES_nologo.jpg | supercardioid with cable and preamp

Model CONSTEL 4011ES-MC (Black only) - PN 40.166.045.32

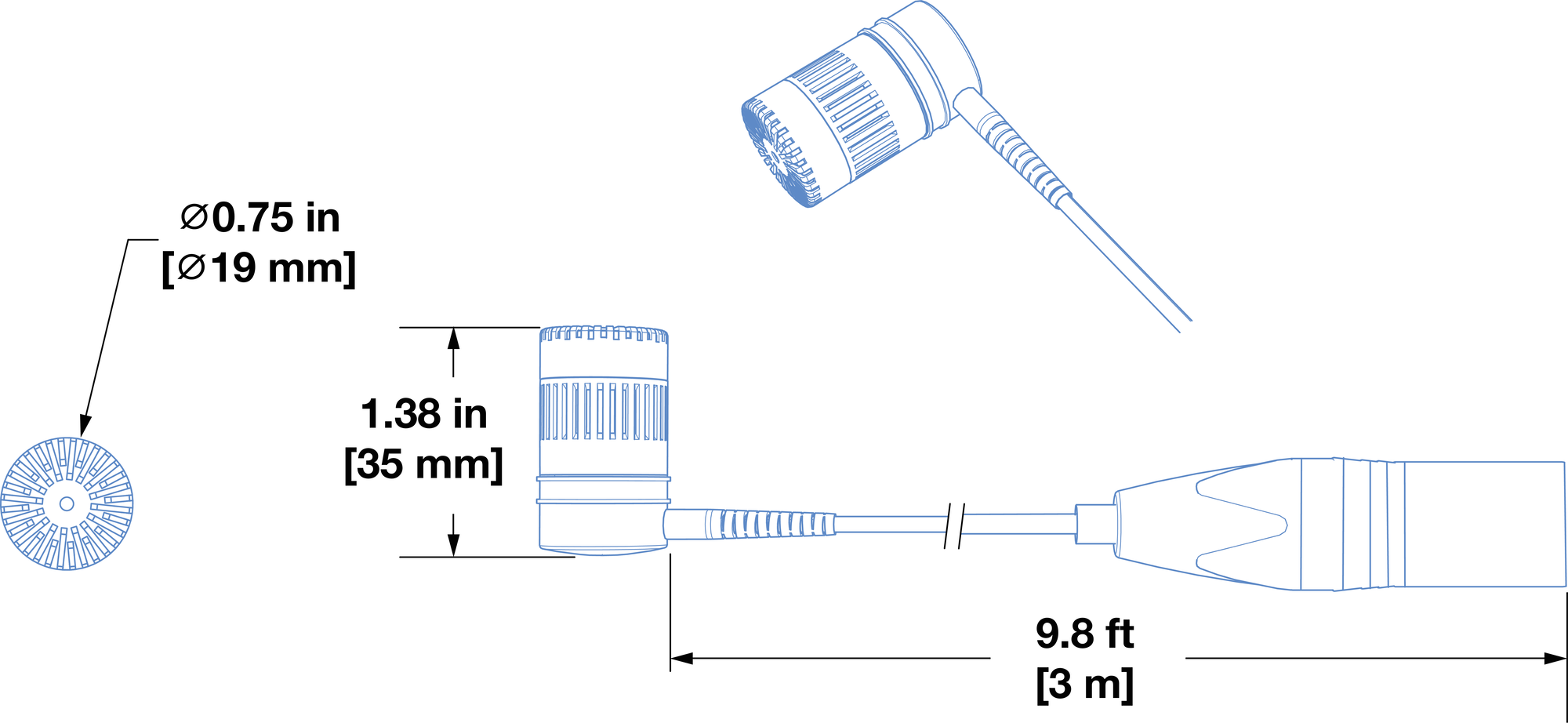

180_4018ES-MC_Dimensions.ai

Capsule

Length - 1.38 in (35 mm)

Diameter - 0.75 in (19 mm)

Preamplifier

Length - 2.83 in (72 mm)

Diameter - 0.75 in (19 mm)

Cable

Length - 9.8 ft (3 m)

Connection

XLR

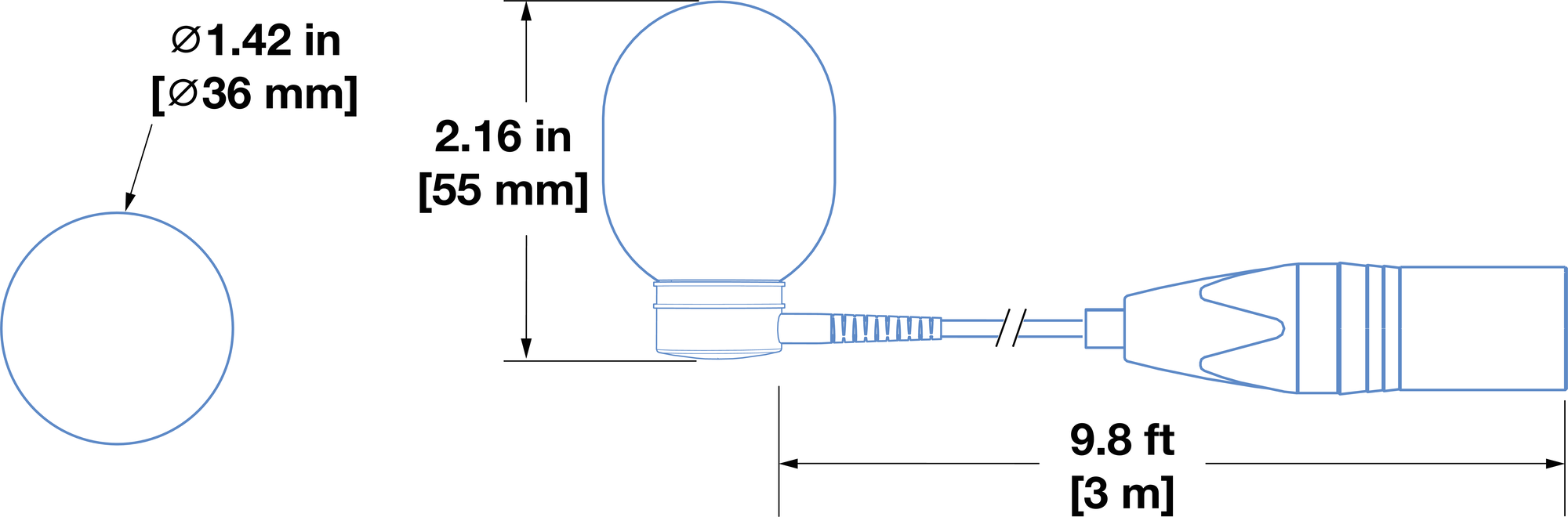

190_4018ES-MC_windscreen_Dimensions.ai

4011ER-MC capsule with DUA0041 windscreen

Length - 2.16 in (55 mm)

Diameter - 1.42 in (36 mm)

CSM4000_Dimensions_reduced.ai

CSM 4000 Shock Mount (available from DPA)

Height - 4.51 in (114 mm)

Diameter - 2.48 in (63 mm)

4060(B/W)-MC | 4060-OL-C-noshadoow.jpg | miniature omni (unmounted)

Model CONSTEL 4060B-MC (Black) - PN 40.166.031.01

Model CONSTEL 4060W-MC (White) - PN 40.166.031.02

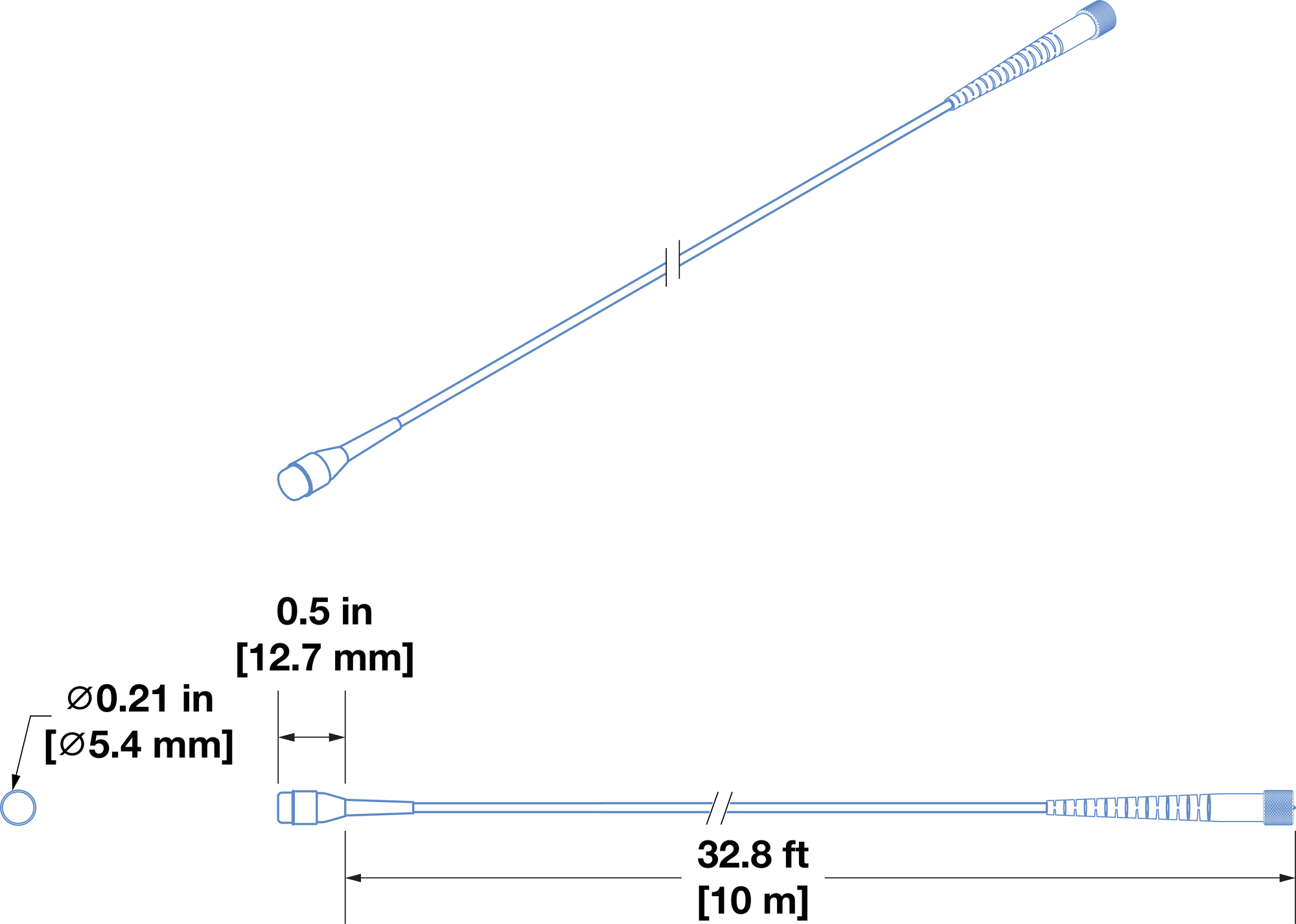

220_4060-MC_Dimensions.ai

Capsule

Length - 0.50 in (12.7 mm)

Diameter - 0.21 in (5.4 mm)

Cable

Length -32.8 ft (10 m)

Connection

Microdot connector

Diameter - 0.23 in (6 mm)

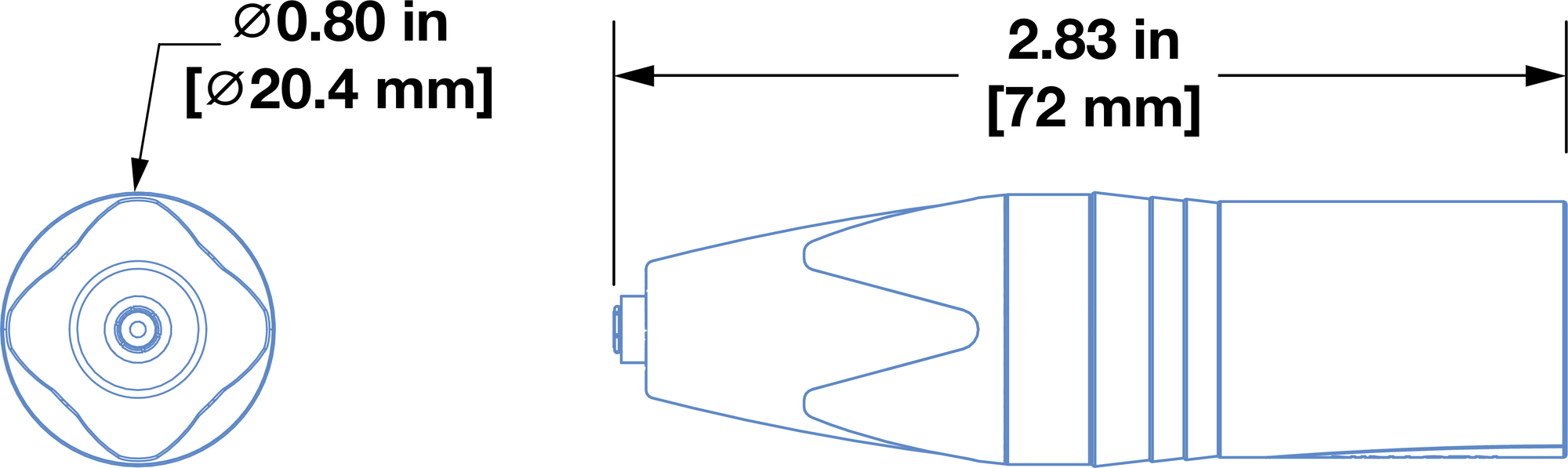

260_DAD6001_Dimensions.ai

DAD6001 Preamplifier

Length - 2.83 in (72 mm)

Diameter - 0.75 in (19 mm)

Connection

XLR

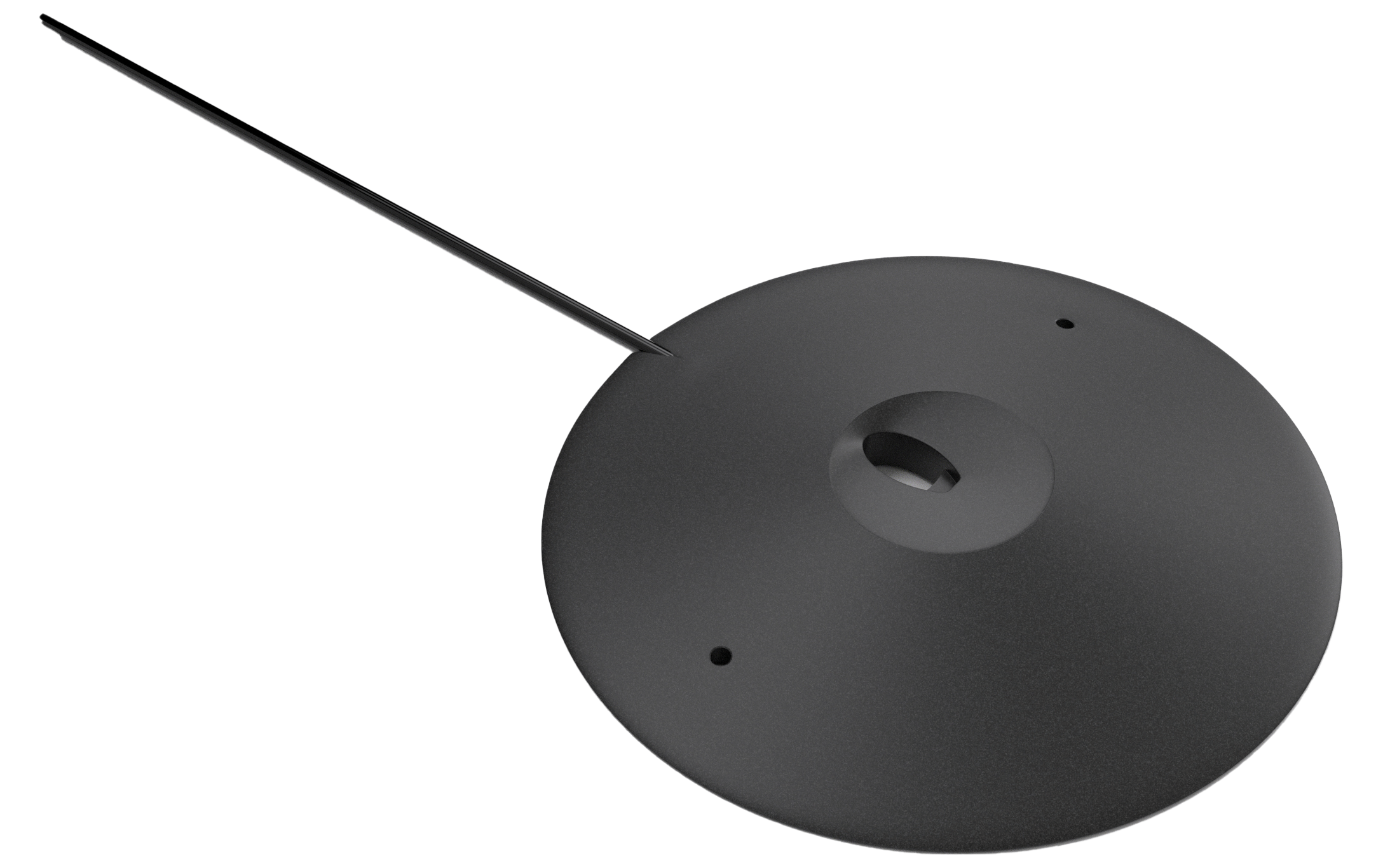

BLM4060-MC | BLM4060_mount_render.jpg | miniature omni (boundary mounted)

Model CONSTEL BLM4060-MC (Black only) - PN 40.166.030.01

250_BLM4060-MC_Dimensions2.ai

Boundry mount

Length - 0.35 in (9 mm)

Diameter - 2.95 in (75 mm)

Connection

Microdot connector

Diameter - 0.23 in (6 mm)

Cable

Length -2.83 in (72 mm)

260_DAD6001_Dimensions.ai

DAD6001 Preamplifier

Length - 2.83 in (72 mm)

Diameter - 0.75 in (19 mm)

Connection

XLR

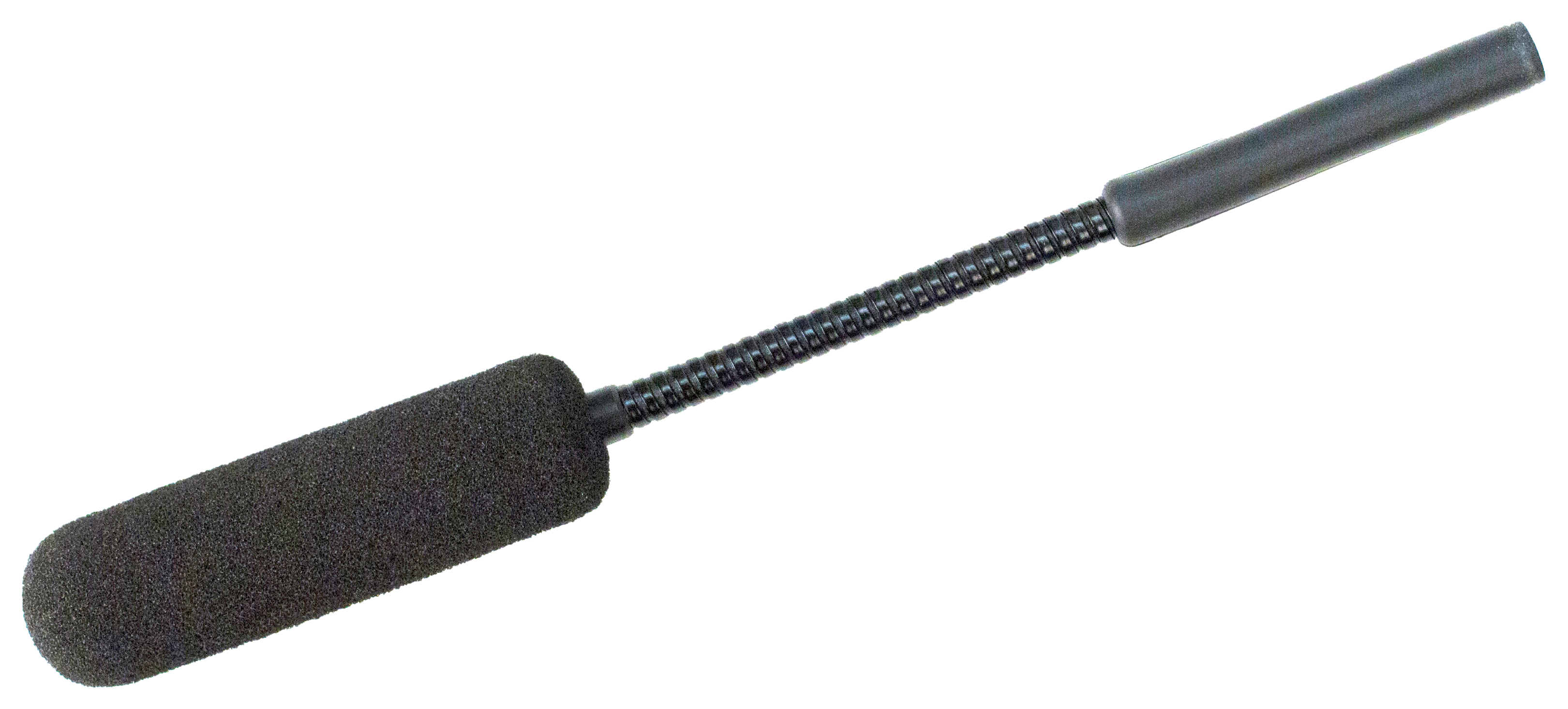

SC4098-(B/W) M15-MC | SC4098-BM15.jpg | mini cardioid with preamp

Model CONSTEL SC4098-BM15-MC (Black) - PN 40.166.053.21

Model CONSTEL SC4098-WM15-MC (White) - PN 40.166.053.22

280_SC4098-BM15-MC_Dimensions.ai

Microphone

Length - 6.22 in (158 mm)

Capsule/windscreen

Length - 2.32 in (59 mm)

Diameter - 0.6 in (15 mm)

Cable

Length -16.4 ft (5 m)

Connection

XLR

Spare windscreen (available from DPA)

DUA0580B (qty 5) black

DUA0580W (qty 5) white

260_DAD6001_Dimensions.ai

DAD6001 Preamplifier

Length - 2.83 in (72 mm)

Diameter - 0.75 in (19 mm)

Connection

XLR
