Datasheet — 1800-LFC

Low-Frequency Control Element

In this section:


Specifications

ACOUSTICAL
Operating frequency range	30 Hz – 125 Hz
Maximum linear sound levels	125.5 dBZ, 135.3 dBZpk, with an RMS analog input level of +3.1 dBV, digital -21dBFS, half space
Linear Sound Levels are measured in half-space at 4 m with a Class 1 sound level meter in accordance with IEC 61672 and ANSI S1.4. Values are scaled to 1 m distance from the loudspeaker while the loudspeaker is reproducing the AES75 test signal for at least one hour when the ambient temperature is 113 F° (45 C°). Loudspeaker system predictions for coverage and SPL are available in Meyer Sound’s MAPP System Design Tool.
COVERAGE
	360° (single unit)
PHYSICAL

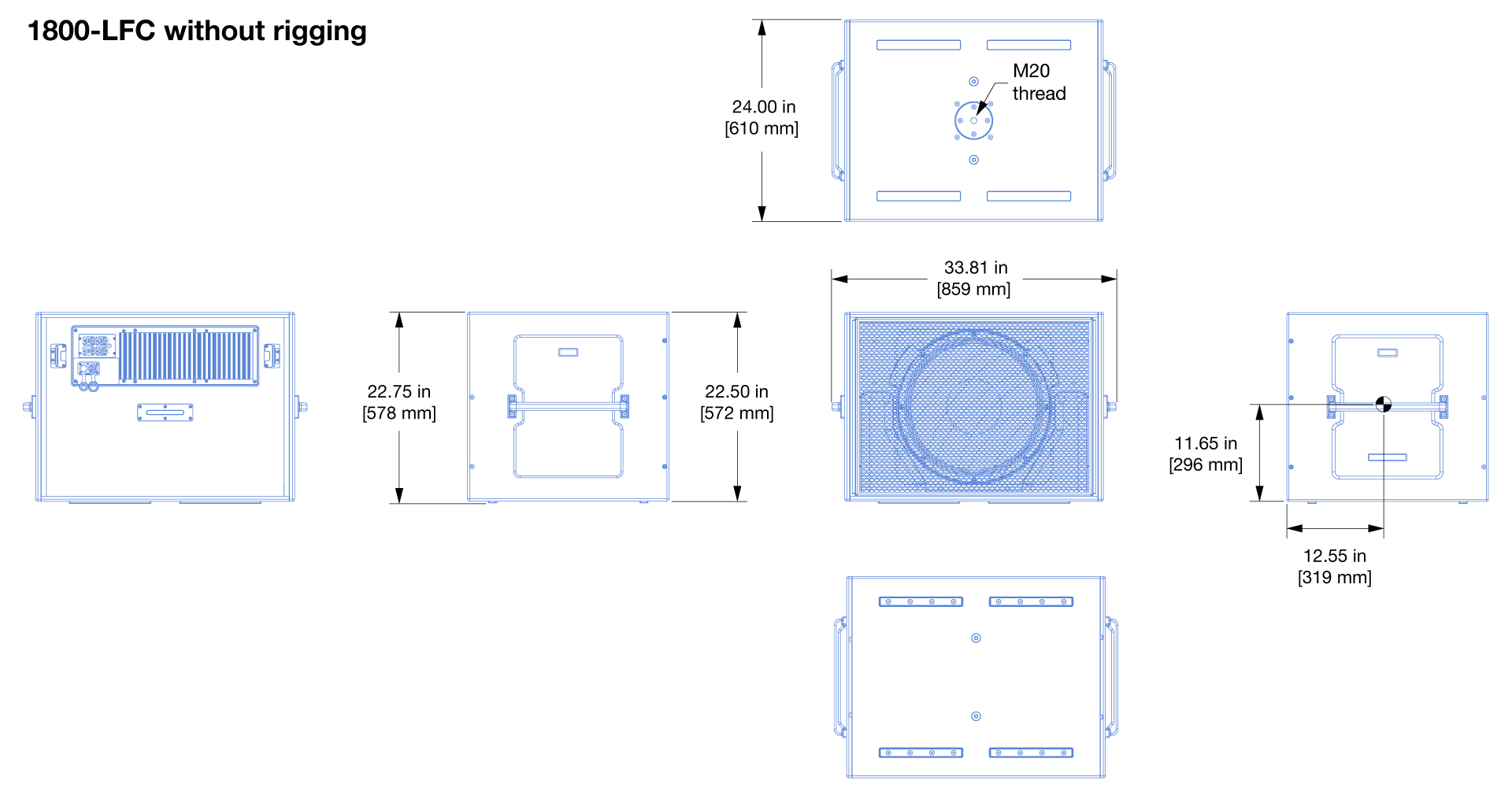

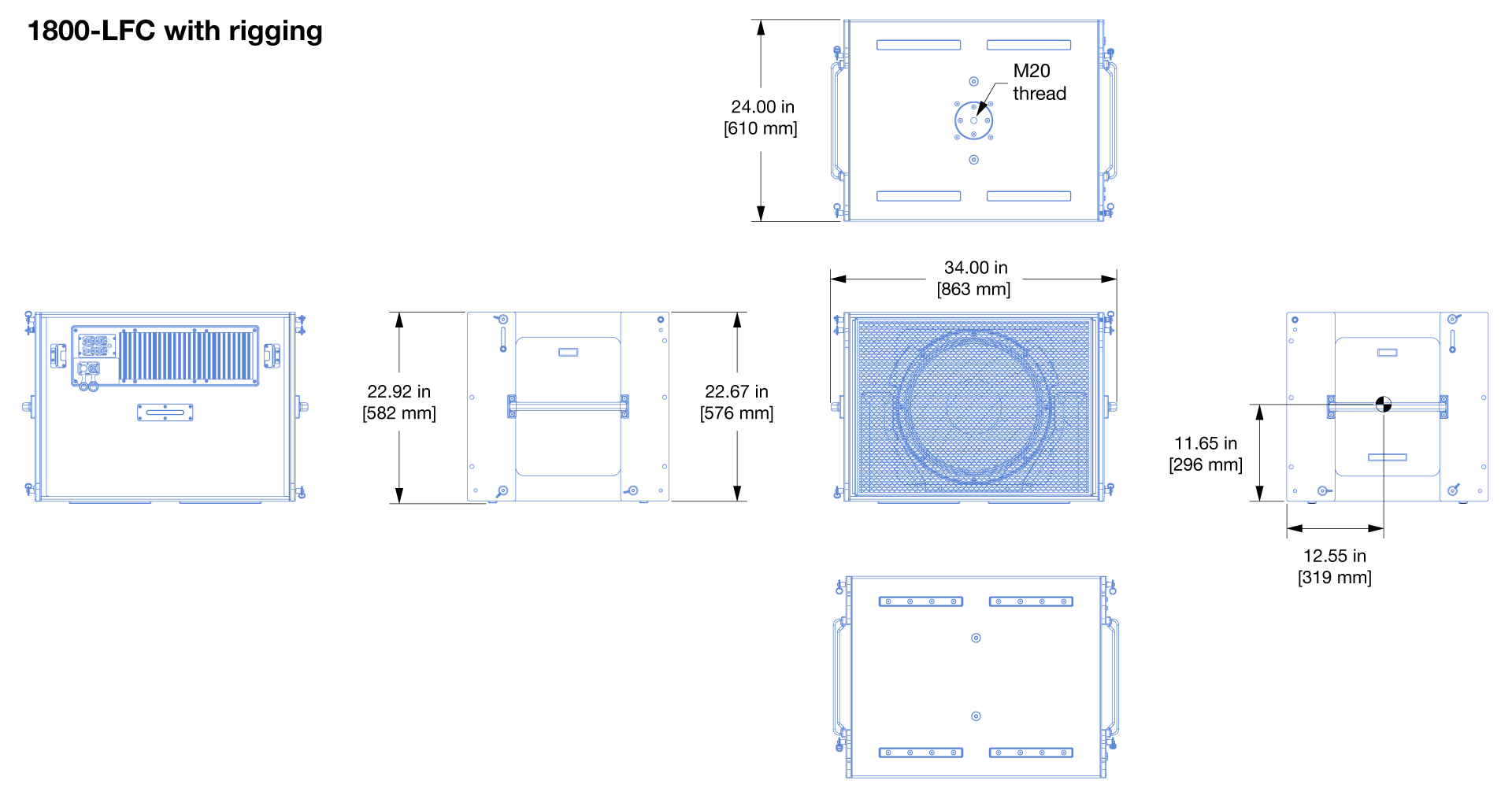

Weight	199 lbs (90 kg) with rigging version 145 lbs (66 kg) without rigging version
Enclosure	Premium multi-ply birch, slightly textured black finish
Protective Grille	Powder-coated, stamped steel
Rigging	with rigging version includes end frames with captive GuideALinks secured with quick-release pins four (4) M8 x 1.25 mm accessory attachment points – two top, two bottom M20 threaded pole mount detachable side handles
IEC Ingress Protection Rating (IP Rating)	IP55, when connected to cables terminated with Neutrik TOP connectors
POWER CONSUMPTION
Max Long-Term Continuous Power (>10 sec)	550 W
Burst Power (<1 sec)	2100 W
Burst Power	50 W
AC POWER
Connector	Neutrik powerCON TRUE1 TOP (True Outdoor Protection)
Operating Voltage Range	100 - 240 V AC, 50 - 60 Hz
ANALOG AUDIO INPUT (standard equipped)
Connector	Neutrik XLR 3-pin TOP (True Outdoor Protection) female input with male loop output
Input Level	Source must be capable of producing +24 dBU into 50 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker
DIGITAL AUDIO INPUT (standard equipped)
Connector	Neutrik etherCON TOP (True Outdoor Protection)
Digital Formats	Milan AVB, AES67 (SMPTE ST 2110-30)
MONITORING
Telemetry	Loudspeaker Remote Product Monitoring (RPM) telemetry transmitted via the Ethernet port, displayed in software.
TRANSDUCERS
Low Frequency	One 18-inch, dual-coil, long-excursion cone driver; 4Ω nominal impedance

PN: 04.338.004.02 A 2610
