Datasheet — ULTRA-X80
ULTRA-X80, ULTRA-X82

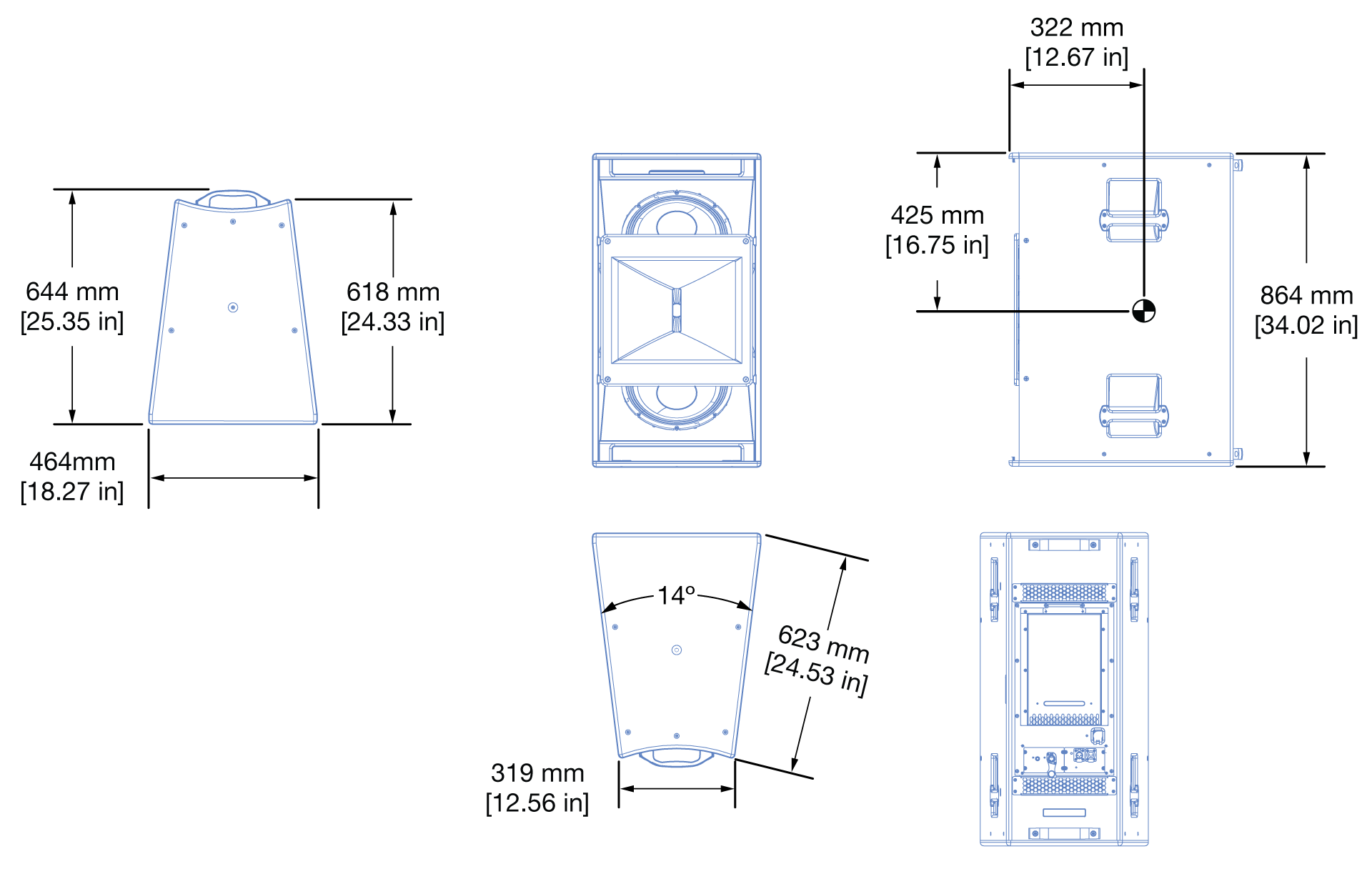

ULTRA-X80 | X82 Dimensions
ULTRA-X80 | X82 Specifications
ACOUSTICAL1 | ULTRA-X80 | ULTRA-X82 |
Operating Frequency Range | 55 Hz - 18 kHz, ±6 dB | |
AES75 Maximum Linear Sound Levels2 | 122 dBZ, 140 dBZpk, 119.6 dBA, with an RMS input level of +3.0 dBV, 50º C | 123 dBZ, 141 dBZpk, 121 dBA, with an RMS input level of +3.0 dBV, 50º C |
COVERAGE | ||
Horizontal Coverage | 95° | 50° |
Vertical Coverage | 40° | 40° |
TRANSDUCERS | ||
Low Frequency | Two 12-inch long-excursion cone drivers | |
High Frequency | One 4-inch diaphragm compression driver connected to a rotatable horn | |
PHYSICAL | ||
Weight | 62.6 kg (138 lb) | |
Enclosure | Premium multi-ply birch, slightly textured black finish. The Outdoor Temporary (OT) version includes additional treatment of the cabinet wood. | |
Protective Grille | Powder-coated, stamped steel. The OT version also includes stainless steel mesh behind the grille. | |
Rigging | M8 x 1.25 mm accessory attachment points, six on bottom, six on top | |
IEC Ingress Protection Rating (IP Rating) | The OT version is IP55 rated, when connected to cables terminated with Neutrik TOP connectors | |
AC POWER | ||
Connector | Neutrik powerCON TRUE1 TOP (True Outdoor Protection) | |
Operating Voltage Range | 200 – 240 V AC, 50 or 60 Hz | |
POWER CONSUMPTION | ||
Max Long-Term Continuous Power (>10 sec) | 900 W | |
Burst Power (<1 sec) | 2400 W | |
Idle Power | 55 W | |
ANALOG AUDIO INPUT3 | ||
Connector | Neutrik XLR 3-pin TOP (True Outdoor Protection) female input with male loop output. | |
Input Level | Source must be capable of producing +24 dBU into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker. | |
DIGITAL AUDIO INPUT3 | ||
Connector | Neutrik etherCON TOP (True Outdoor Protection) | |
Digital Format | AVB, Milan Certified | |
MONITORING | ||
Telemetry | Loudspeaker telemetry transmitted via the Ethernet port, displayed in software | |
Notes
Loudspeaker system predictions for coverage and sound levels are available in Meyer Sound’s MAPP System Design Tool.
AES75 Maximum Linear Sound Level is measured in free-field at 4 m with a Class 2 sound level meter in accordance with IEC 61672 and ANSI S1.4. Values are scaled to 1 m distance from the loudspeaker when the loudspeaker is reproducing Music-Noise with less than 2 dB of compression for at least 1-hour, 40-degree C ambient temperature.
Music-Noise is a full bandwidth, (10 Hz – 22.5 kHz) test signal with a crest factor that more closely represents typical program material. It has a constant instantaneous peak level in octave bands, a crest factor that increases with frequency, and a full bandwidth Peak to RMS ratio of 18 dB.
Both analog and digital audio inputs are provided as standard.
 |  |
