Datasheet — TIGRA
Medium-format line array loudspeaker

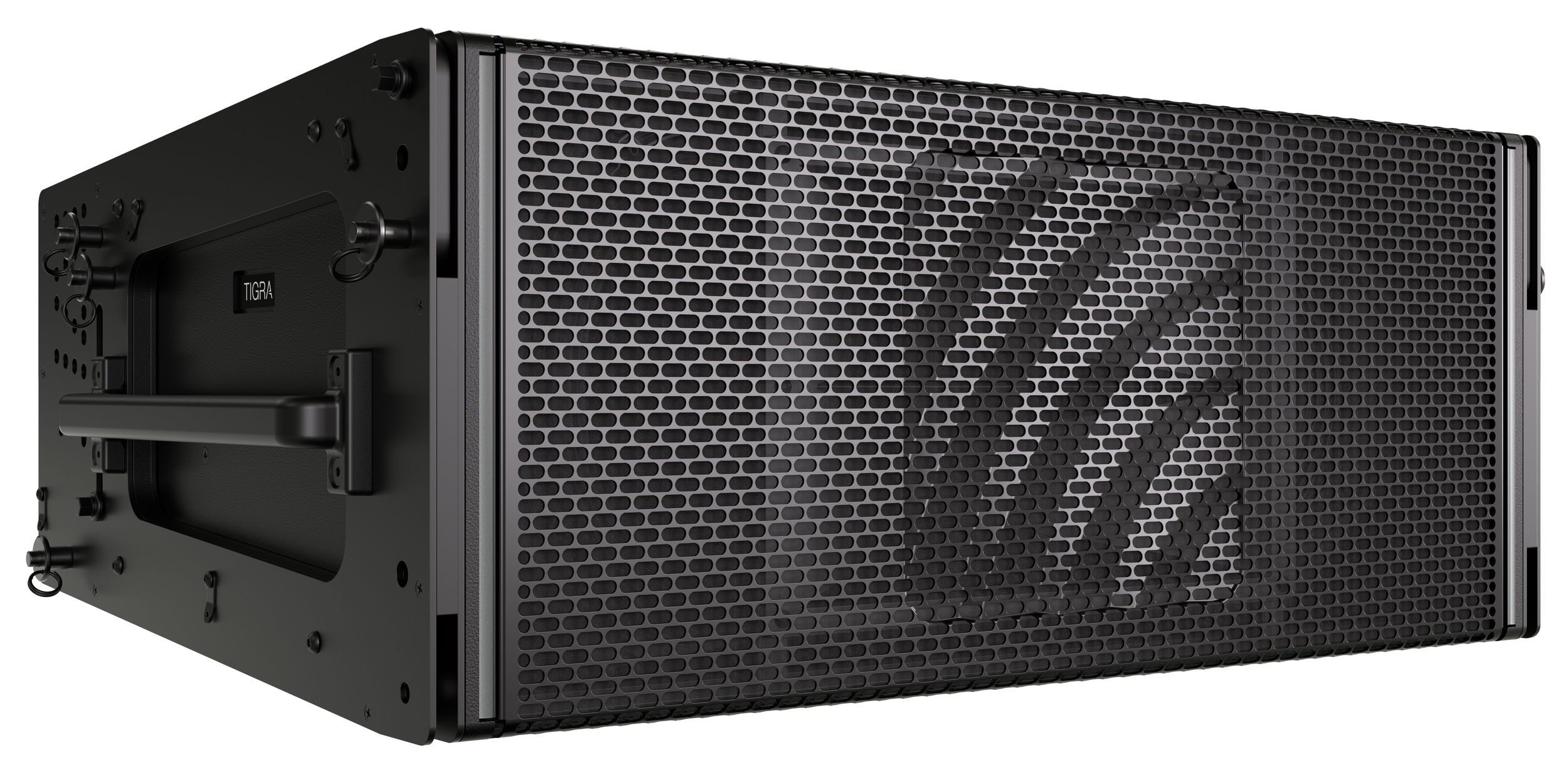

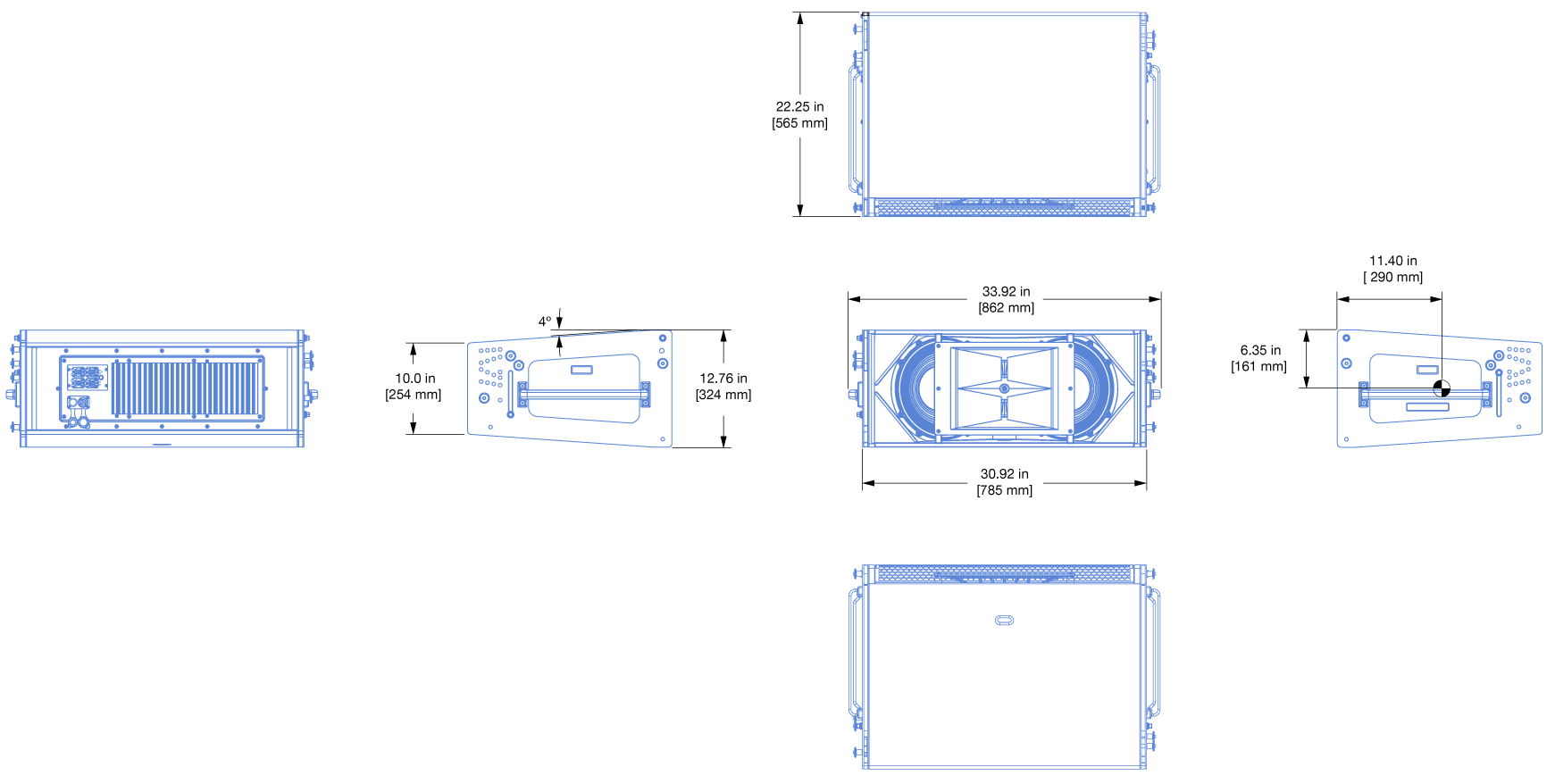

TIGRA dimensions
TIGRA specifications
ACOUSTICAL 1 | TIGRA-L | TIGRA-W | |
Operating frequency range | 55 Hz – 16 kHz | ||
Maximum sound level2 | 146 dB | 145 dB | |
AES75 maximum linear sound levels | 122 dBz, 140.5 dBzpk, with an RMS input level of +4 dBV | 121 dBz, 139.5 dBzpk, with an RMS input level of +3 dBV | |
COVERAGE3 | |||
Horizontal coverage | 85° | 110° | |
PHYSICAL | |||
Dimensions | W: 33.92 in (862 mm) x H: 12.76 in (324 mm) x D: 22.25 in (565 mm) | ||
Weight | 120 lbs (54 kg) | ||
Enclosure | Premium multi-ply birch, slightly textured black finish | ||
Protective grille | Powder-coated, stamped steel | ||
Rigging | End frames with captive GuideALinks secured with 0.375 x 0.75 inches quick-release pins that allow 0.5°– 10° splay angles; detachable side handles | ||
IEC ingress protection rating (IP rating) | IP55, when connected to cables terminated with Neutrik powerCON® TRUE1 cable connectors | ||
AC POWER | |||
Connector | Neutrik powerCON® TRUE1 Chassis Connector NAC3PX-TRUE1 sealed power connector for harsh and demanding environments | ||
Operating voltage range | 100-240V~, 50-60Hz | ||
POWER CONSUMPTION | |||
Maximum long-term continuous power (>10 sec) | 550 W | ||
Maximum burst power (<1sec) | 1270 W | ||
Idle power | 50 W | ||
ANALOG AUDIO INPUT 4 | |||
Connector | Neutrik XLR 3-pin TOP (True Outdoor Protection) airtight female input with male loop output with captive sealing caps | ||
Input level | The source must be capable of producing +24 dBU into 50 Ω to achieve the maximum peak SPL over the loudspeaker's operating bandwidth. | ||
DIGITAL AUDIO INPUT4 | |||
Connector | Two Neutrik RJ45 etherCON TOP (True Outdoor Protection) airtight network inputs with captive sealing caps | ||
Digital format | Milan AVB | ||
MONITORING | |||
Telemetry | Loudspeaker Remote Product Monitoring (RPM) telemetry is transmitted via the Ethernet port, and displayed in software. | ||
TRANSDUCERS | |||
Low-frequency | Two 10-inch long-excursion cone drivers | ||
High-frequency | One 4-inch diaphragm compression driver coupled to a horn | ||
Notes
Loudspeaker system predictions for coverage and SPL are available in Meyer Sound’s MAPP 3D system design tool.
The maximum sound level is the Lpeak measured using burst noise.
The TIGRA 2-way loudspeaker has a unique placement of low-mid transducers and a computationally optimized high horn, creating a directional loudspeaker with a controlled pattern for the full frequency range. Arrays of six units and longer functionally create a cardioid polar pattern, which remains consistent at all SPL levels, including when pushed into limiting, and does not require any user settings.
Both analog and digital audio inputs are provided as standard.
 |  |
PN: 04.336.04.02 B 2606 |
