Accessory Datasheet — MRB-T1 Rigging Bar

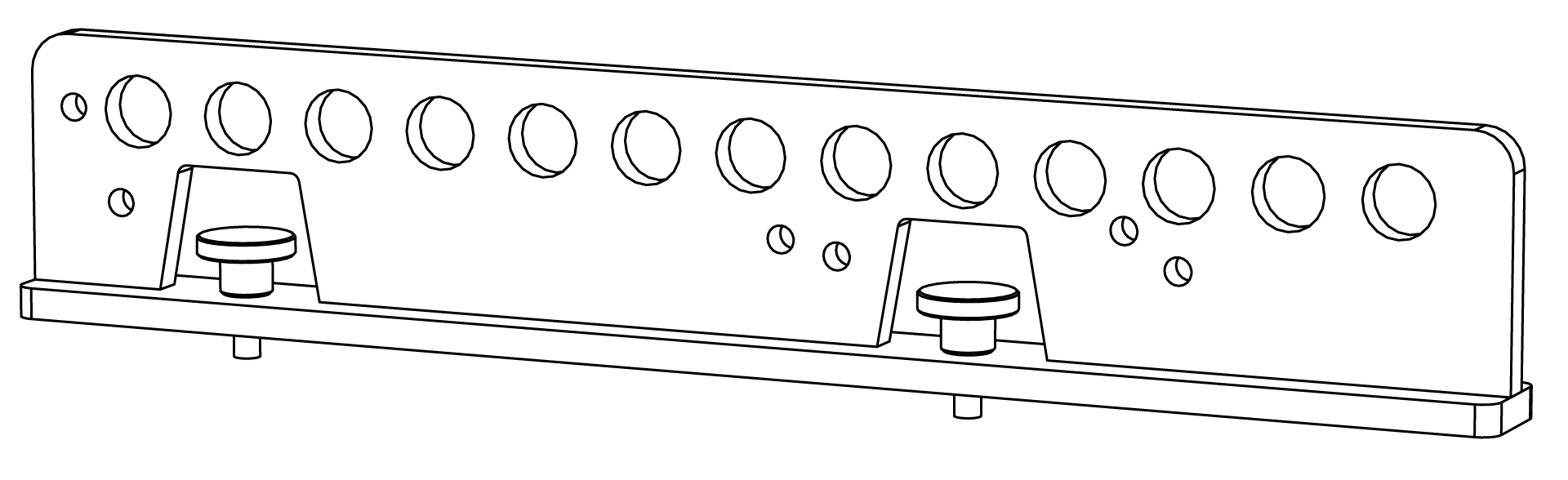

PN: 40.330.059.01 compatible with ULTRA-X80 / ULTRA-X82, 1800-LFC
In this section:

PRODUCT

Part number

40.330.059.01

Function

When mounted to the top of a loudspeaker, provides attachment point(s) for 5/8-inch shackles. For vertical arrays, when mounted to the bottom of one loudspeaker and the top of another, provides attachment points for the MSK-T1 Splay Kit.

Product compatibility

ULTRA-X80, ULTRA-X82, 1800-LFC

MATERIALS AND FINISH

Primary materials

Steel

Finish

Low gloss, weather-protected, non-textured powder-coated

Exterior color

Black

Custom color available

Available; mounting hardware is always black

ENIVIRONMENTAL

Protection level

Ultraviolet (UV), chemical, and water-resistant

RIGGING AND SAFETY

Safety restrictions

Only fasten to loudspeakers with the provided fastening hardware or replacement hardware provided by Meyer Sound Laboratories

Rigging load capacity

Maximum three ULTRA-X80 or ULTRA-X82, two 1800-LFC, or one 1800-LFC and one ULTRA-X80 series

WEIGHTS AND MEASURES

Product weight

7.8 lb (3.54 kg)

Outer dimensions

W: 1.48 in (38 mm) x H: 3.41 in (87 mm) x D: 18.77 in (477 mm)

CARE AND MAINTENANCE

Inspection

At least annually, inspect for deterioration or deformation per Safety statement for rigging.Safety statement for rigging

Cleaning

Clean with soap, water, and a sponge.

Table 1. Kit contents

Quantity

Part name

Meyer Sound PN

1

M330 Pick up bar

45.330.061.01

2

Knurled knob thumb screw, M8 x 1.25, 20mm long, black

124.241



When installing Meyer Sound loudspeakers, always observe the following precautions:

  • Use all Meyer Sound products in accordance with local, state, federal, and industry regulations. Owners and users must evaluate the reliability of any rigging or mounting method for their application. Rigging loudspeakers requires trained and experienced professionals.

  • Use mounting and rigging hardware rated to meet or exceed the suspended weight.

  • Make sure to attach mounting hardware to the building's structural components (studs or joists), and not just to the wall surface. Verify that the building's structure and the anchors used for the installation will safely support the total weight of the mounted loudspeakers.

  • Use mounting hardware appropriate for the installation surface.

  • Tighten bolts securely. Meyer Sound recommends using Loctite® on bolt threads and safety cables.

  • Inspect mounting and rigging hardware regularly. Immediately replace any worn or damaged components.

Assembly instructions

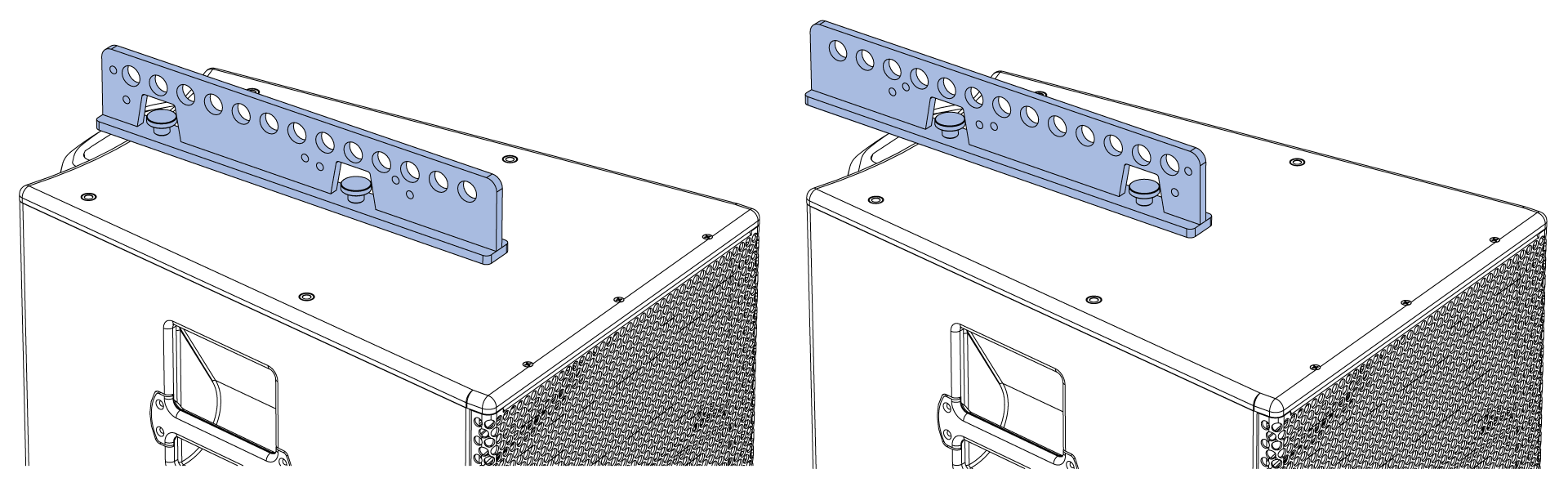

Orient the rigging bar to maximize up or down tilt.

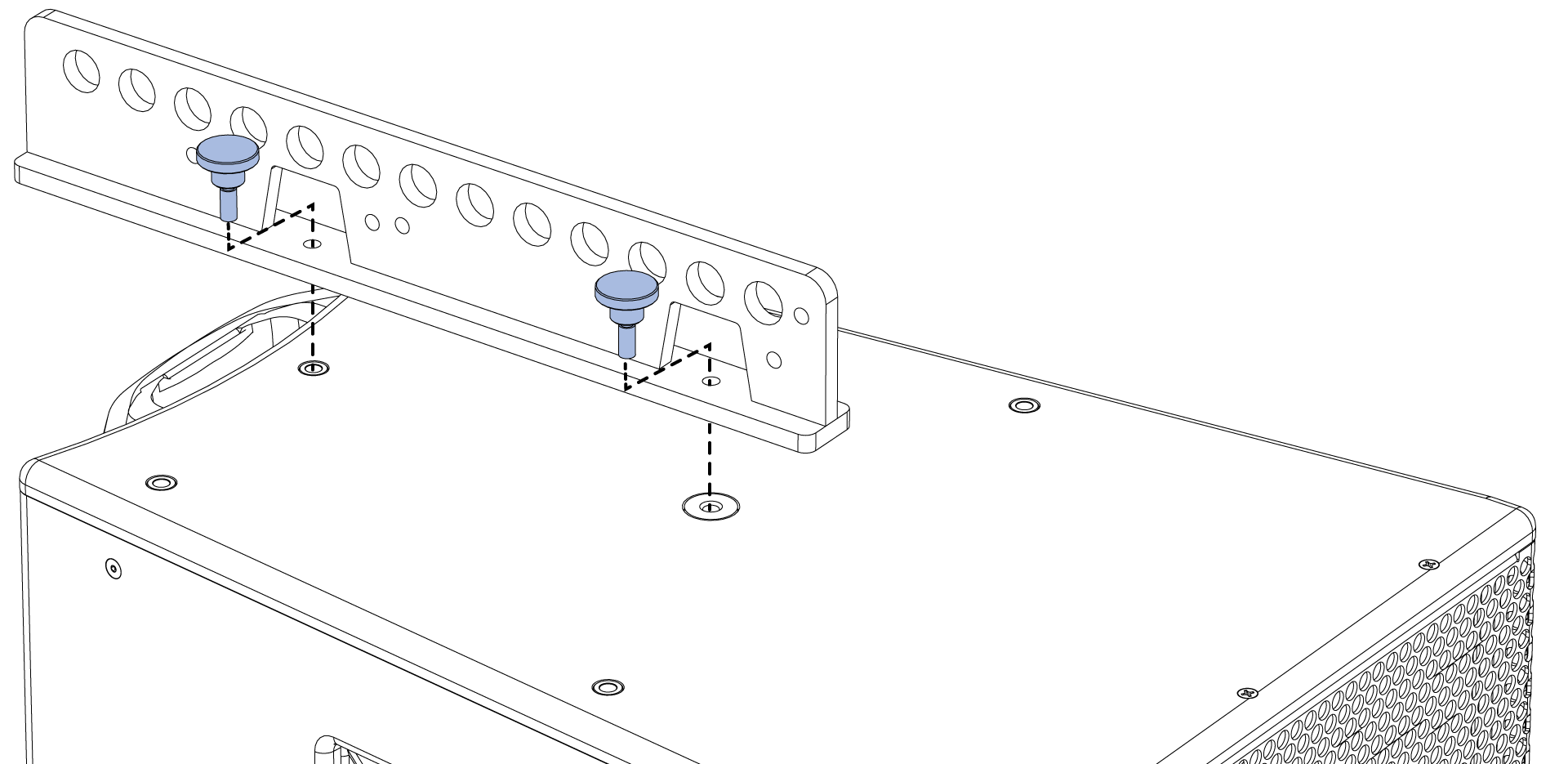

Secure each rigging bar with two provided fasteners and fully hand-tighten. For longer-term installations, apply thread locker to fastener threads before installation; thread locker not included.


Combine with the MSK-T1 Splay Kit for vertical arrays. See Accessory Datasheet — MSK-T1 Splay Kit.

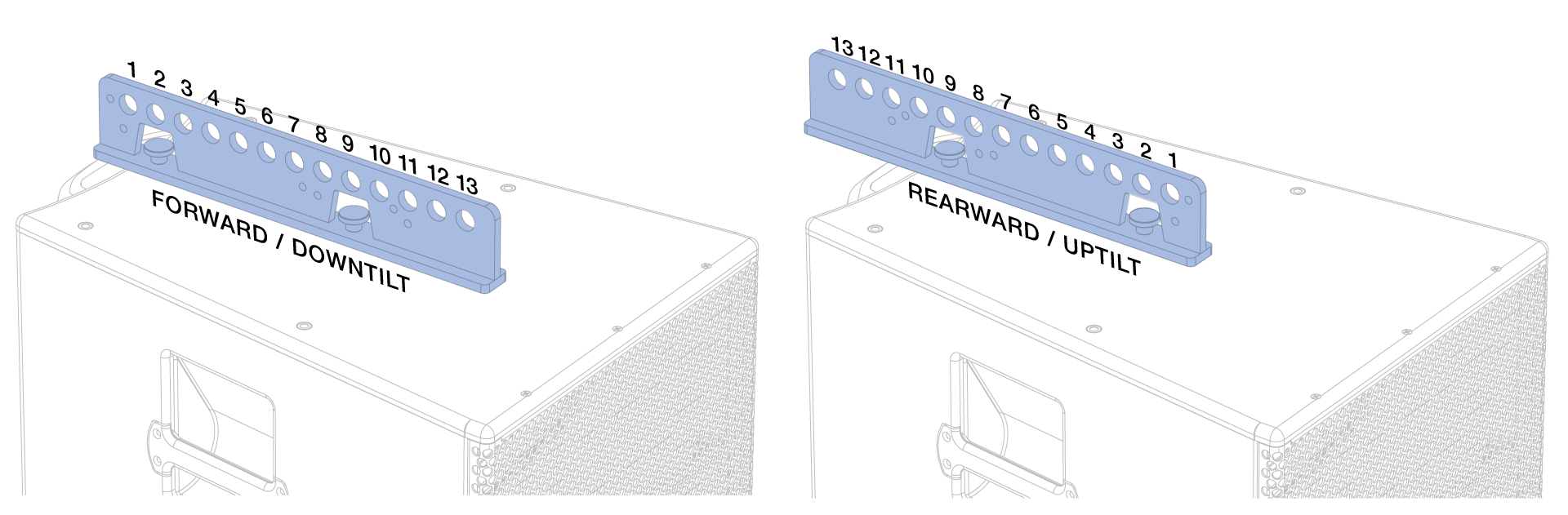

The 0.87 in (22 mm) suspension holes accept standard 5/8 in shackles. For single-point suspension, the table below lists the resulting loudspeaker angles: negative values indicate downtilt; positive values indicate uptilt.

Table 2. Forward

1

2

3

4

5

6

7

8

9

10

11

12

13

-30

-26

-23

-20

-16

-12

-8

-4

0

+4

+8

+12

+16



Table 3. Rearward

13

12

11

10

9

8

7

6

5

4

3

2

1

-38

-35

-32.5

-29

-26

-23

-19

-15

-11

-7

-3

+1

+5



PN: 04.330.004.06 A 2606
