Accessory Datasheet — MCB-T2 Caster Board
PN: 40.333.056.01 compatible with USW-121P

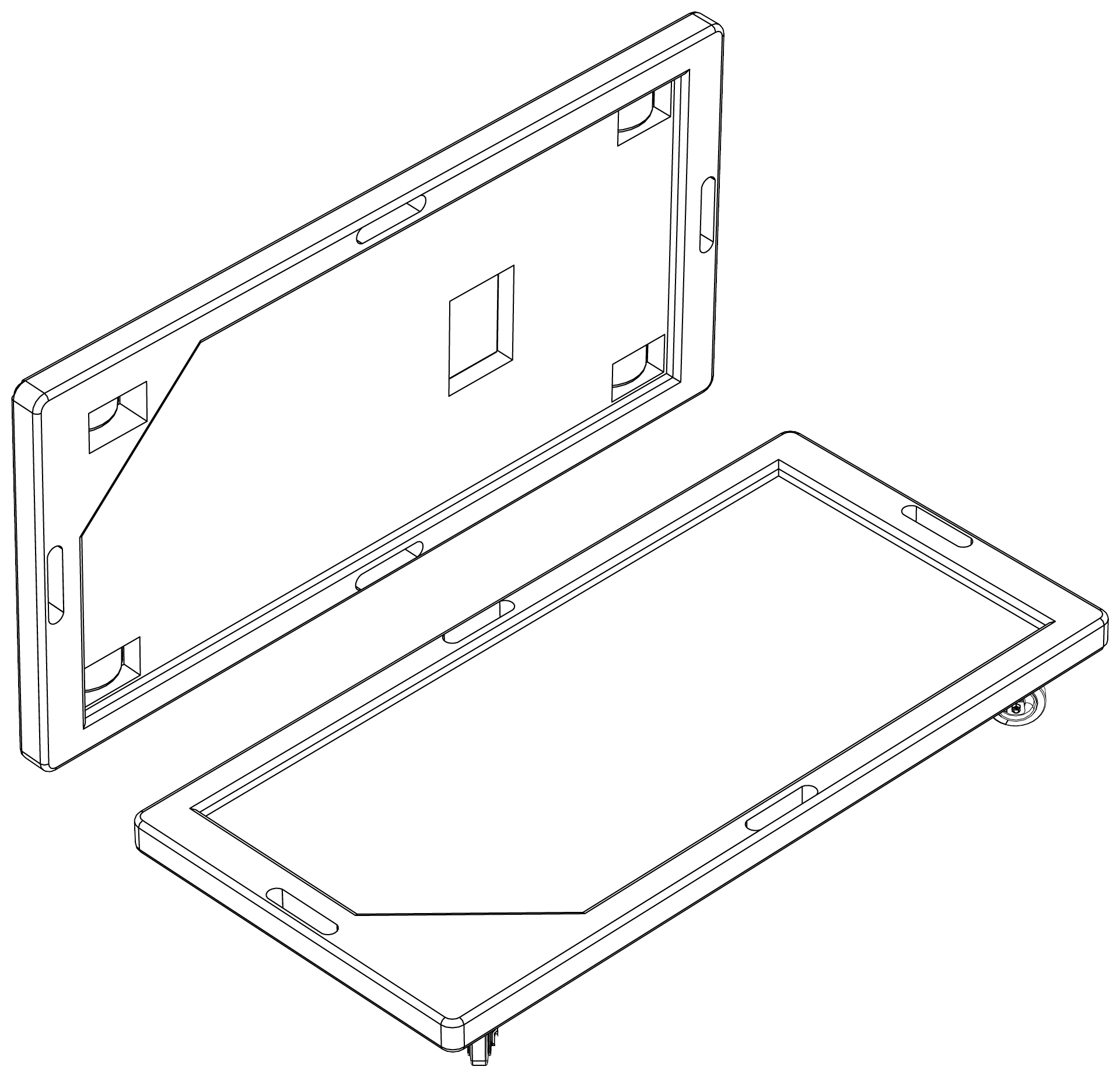

 | The MCB-T2 kit provides safe transportation for up to two (2) USW-121P loudspeakers. Handle cutouts double as optional strapping points. The top board features integrated stacking cups and a recessed label tray. Includes one (1) ratchet strap. |  |
PRODUCT | |
Part number | 40.333.056.01 |
Product compatibility | USW-121P |
MATERIALS AND FINISH | |
Primary materials | Plywood |
Finish | Black, semi-gloss painted wood |
Exterior color | Black with silver hardware |
Custom color available | No |
RIGGING AND SAFETY | |
Safety restrictions | Do not roll stacked cases. Stack up to two high for storage or in a truck. |
Rigging load capacity | No rigging |
WEIGHTS AND MEASURES | |
Product weight | 59.5 kg (129 lb) |
Shipping weight | |
Weight - caster board + 1 loudspeaker | 148 kg (327 lb) |
Weight - caster board + 2 loudspeakers | 238 kg (525 lb) |
Outer dimensions | W: 1515 mm (59.63 in) x H: 1529 mm (60.2 in) x D: 753 mm (29.63 in) |
CARE AND MAINTENANCE | |
Painting | Touch up with semi-gloss paint. MCB products require regular painting; the MCB paint finish will degrade before the paint finish of the loudspeaker products they transport. |
Cleaning | Clean with a sponge, soap, and water. For shipping label removal, soak the label with a citrus-based cleaner, then wipe to remove. |
PN: 04.333.004.03 A 2601 |
