Accessory Datasheet — MHCC-T1 Handle Cup Cover
PN: 40.330.058.01 compatible with ULTRA-X80, ULTRA-X82, USW-121P
 |
PRODUCT | |
Part number | 40.330.058.01 |
Function | Prevents debris accumulation in upward-facing handle cups. |
Product compatibility | ULTRA-X80, ULTRA-X82, USW-121P |
MATERIALS AND FINISH | |
Primary materials | Steel |
Finish | Low gloss, weather-protected, non-textured powder-coated |
Exterior color | Black |
Custom color available | Available; mounting hardware is always black |
ENIVIRONMENTAL | |
Protection level | Ultraviolet (UV), chemical, and water-resistant |
WEIGHTS AND MEASURES | |
Product weight | 2.9 lb (1.3 kg) |
Outer dimensions | W: 8.0 in (203 mm) x H: 8.0 in (203 mm) x D: 0.17 in (4 mm) |
CARE AND MAINTENANCE | |
Inspection | Confirm the gasket has no deformation or gaps against the cabinet. |
Cleaning | Clean with soap, water, and a sponge. |
Quantity | Part name | Meyer Sound PN |
|---|---|---|
1 | T1 handle cup cover with gasket | 45.330.011.01 |
4 | Screw, 10 x32, 1-inch, 82-deg counter sink, stainless, black oxide | 101.877 |
When installing Meyer Sound loudspeakers, always observe the following precautions:
Use all Meyer Sound products in accordance with local, state, federal, and industry regulations. Owners and users must evaluate the reliability of any rigging or mounting method for their application. Rigging loudspeakers requires trained and experienced professionals.
Use mounting and rigging hardware rated to meet or exceed the suspended weight.
Make sure to attach mounting hardware to the building's structural components (studs or joists), and not just to the wall surface. Verify that the building's structure and the anchors used for the installation will safely support the total weight of the mounted loudspeakers.
Use mounting hardware appropriate for the installation surface.
Tighten bolts securely. Meyer Sound recommends using Loctite® on bolt threads and safety cables.
Inspect mounting and rigging hardware regularly. Immediately replace any worn or damaged components.

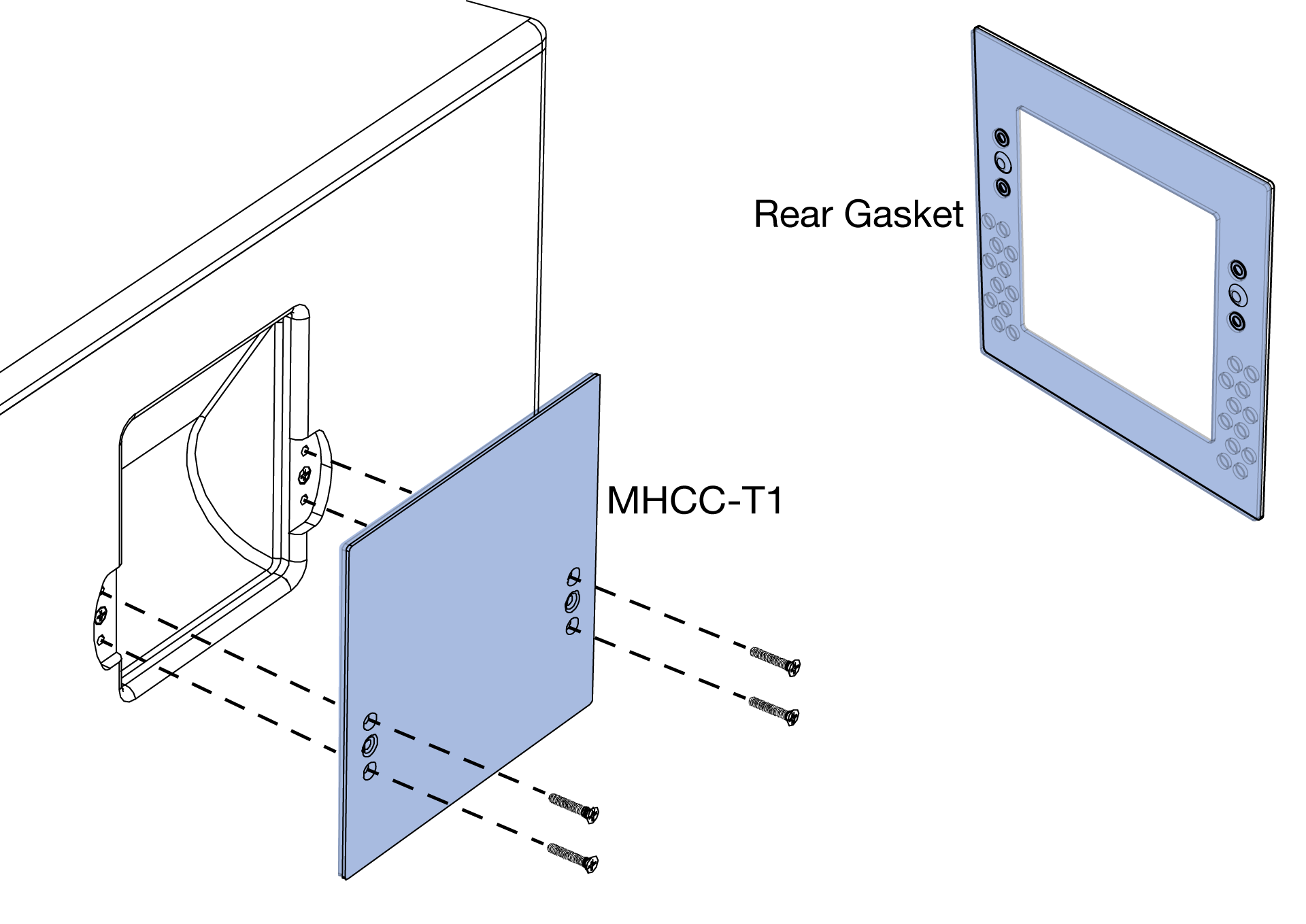

Assembly instructions
Remove the four screws that secure the factory-installed grasp bar. Clean the area around the cabinet handle opening to remove any debris, ensuring the cover’s gasket seals well. Secure the cover with the four included screws, tightening them until the gasket is approximately 50% compressed.
PN: 04.330.004.05 A 2606 |
